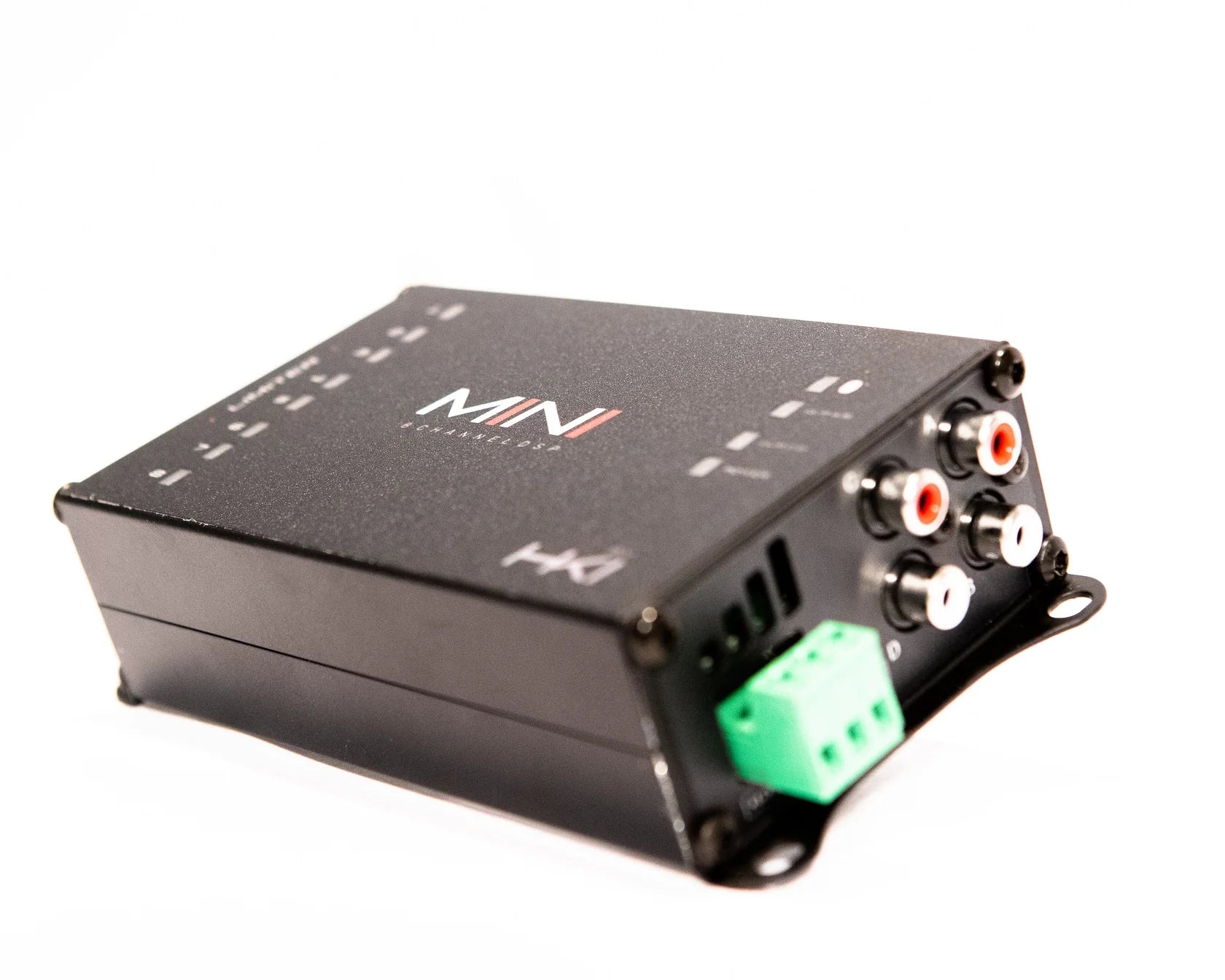

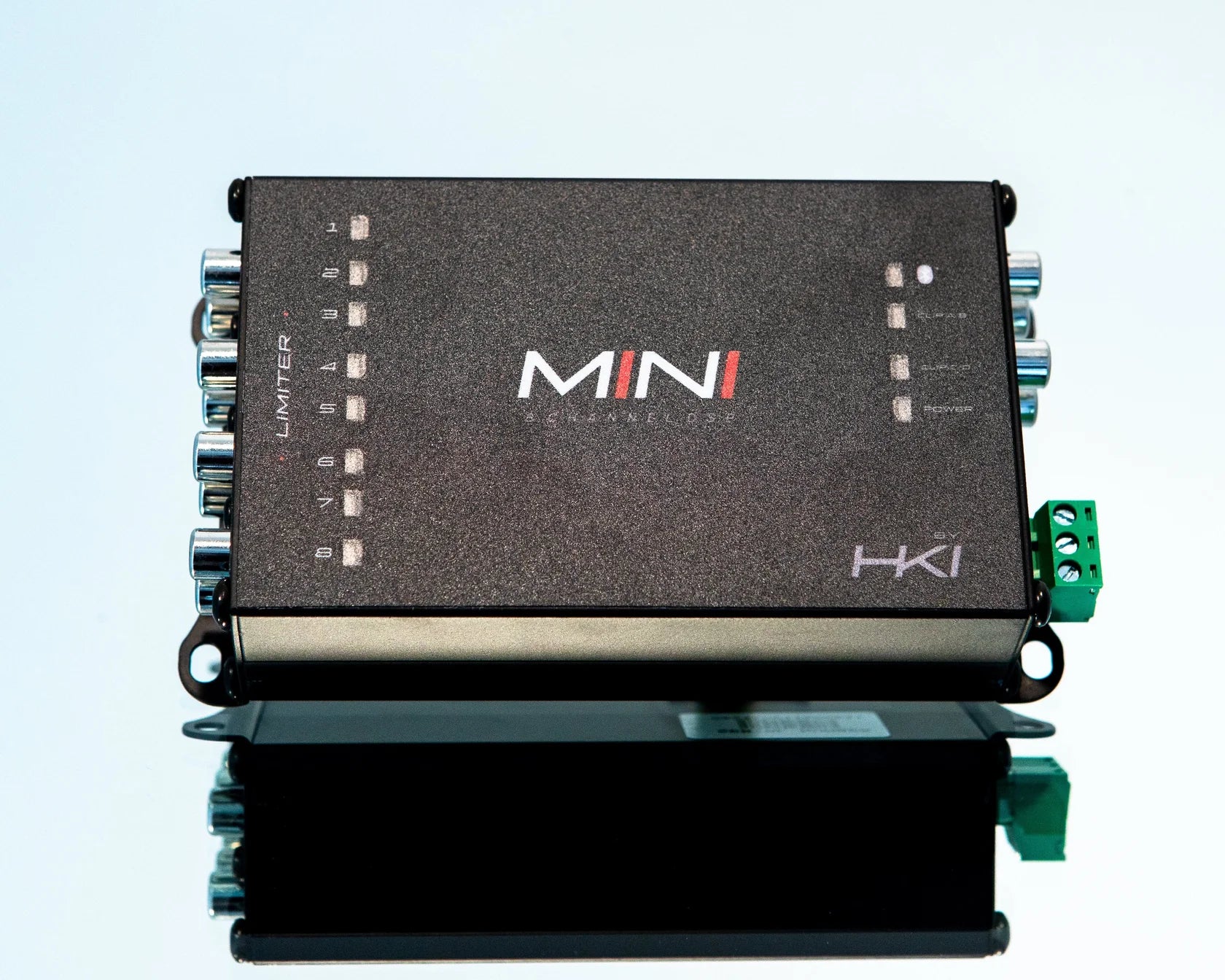

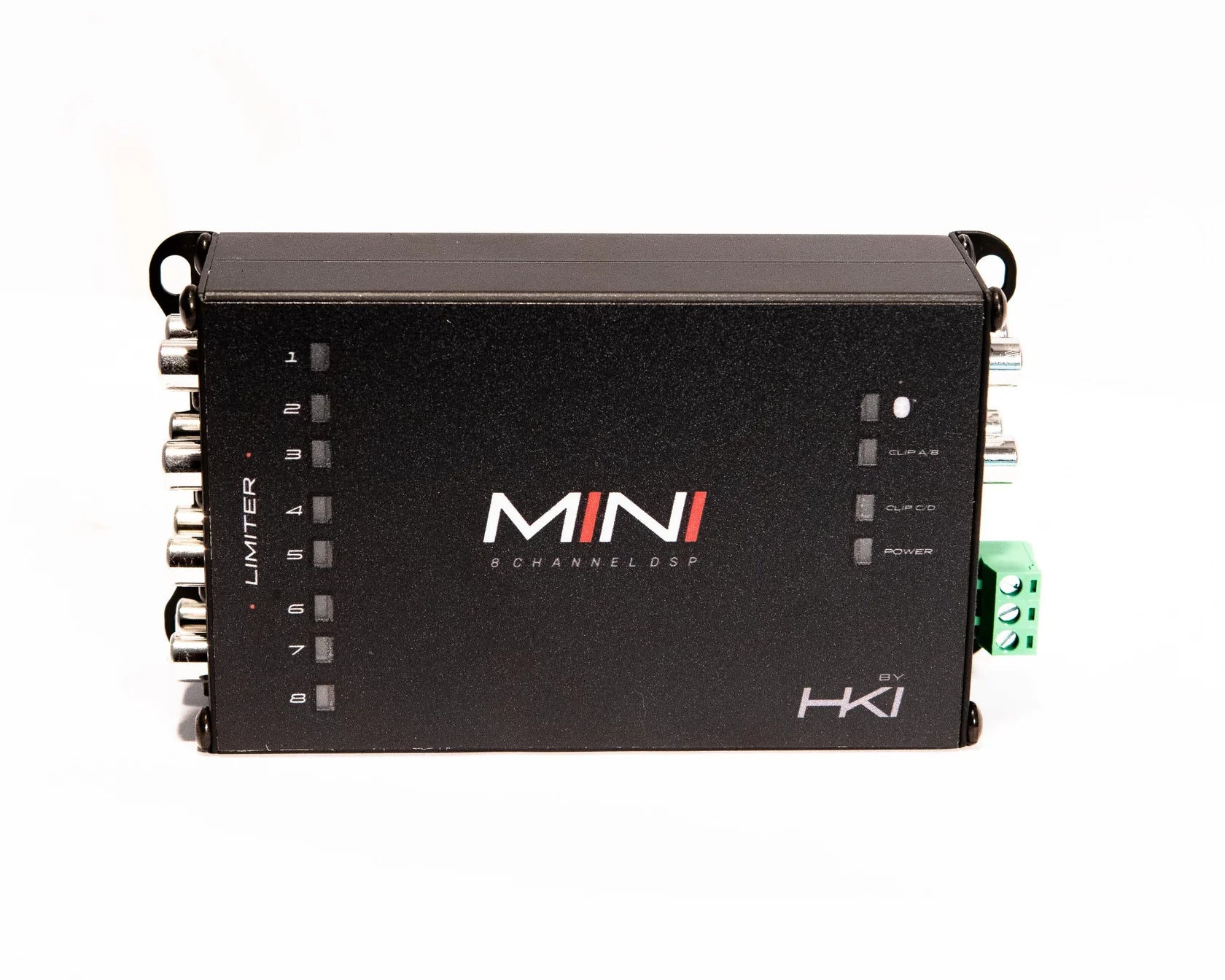

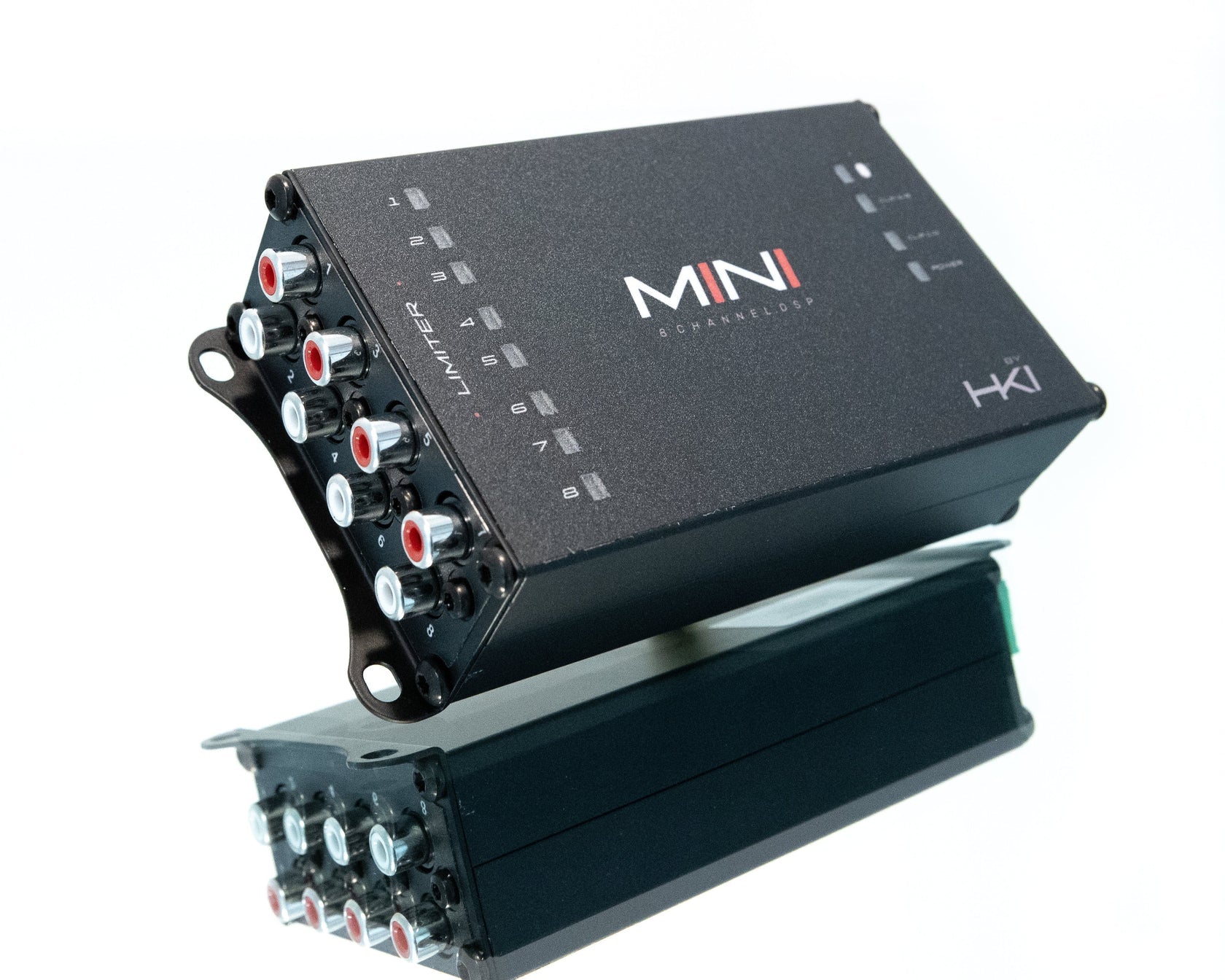

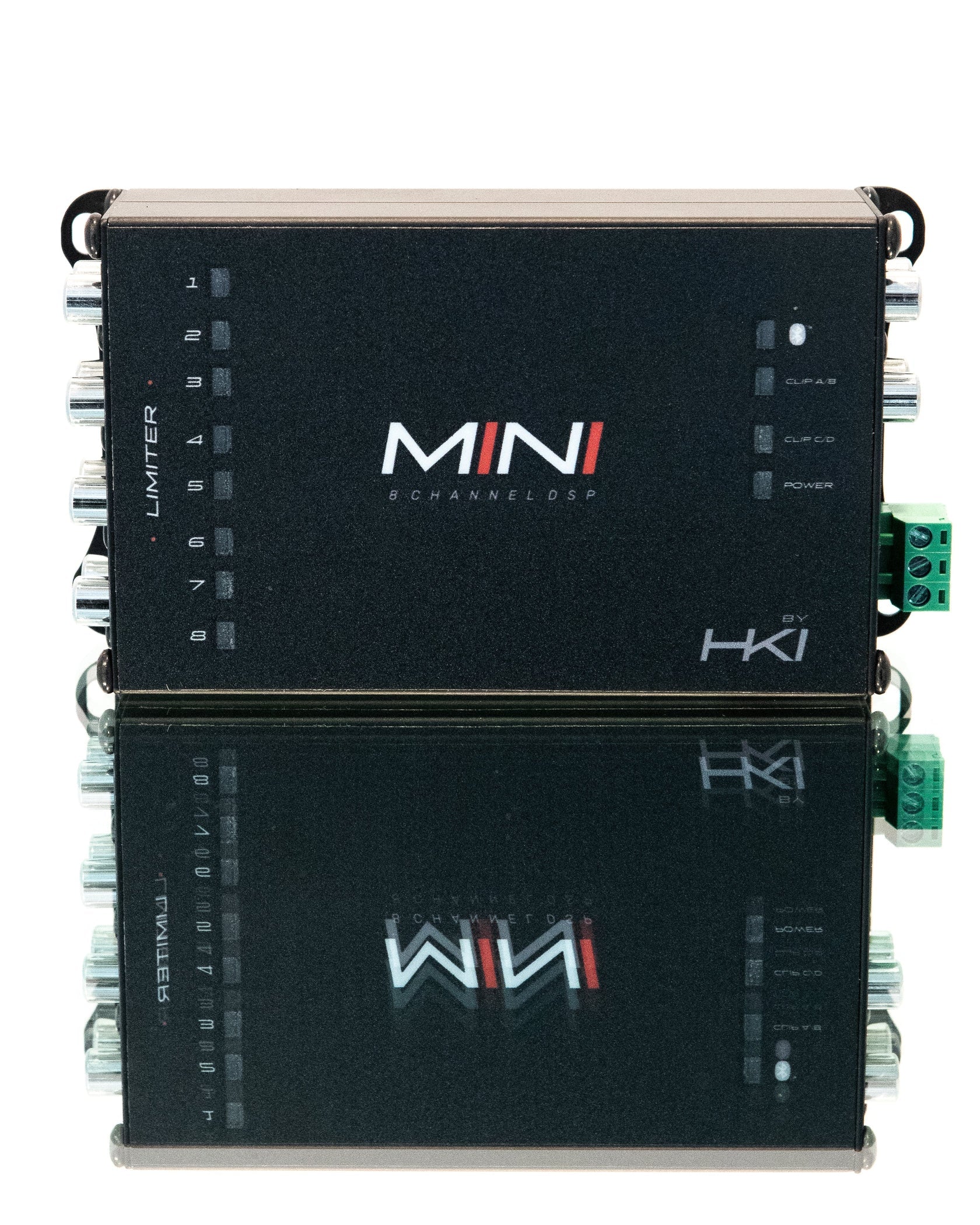

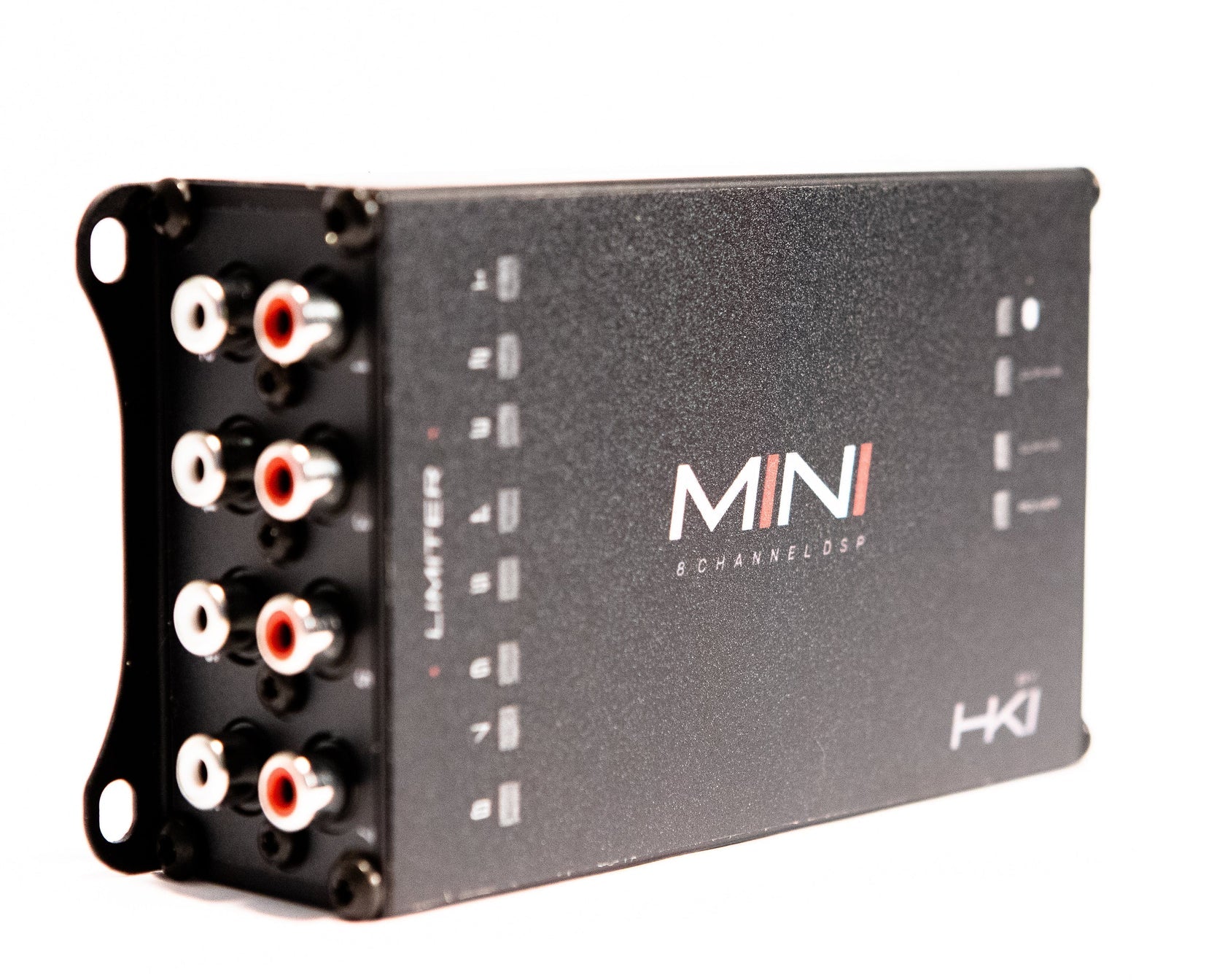

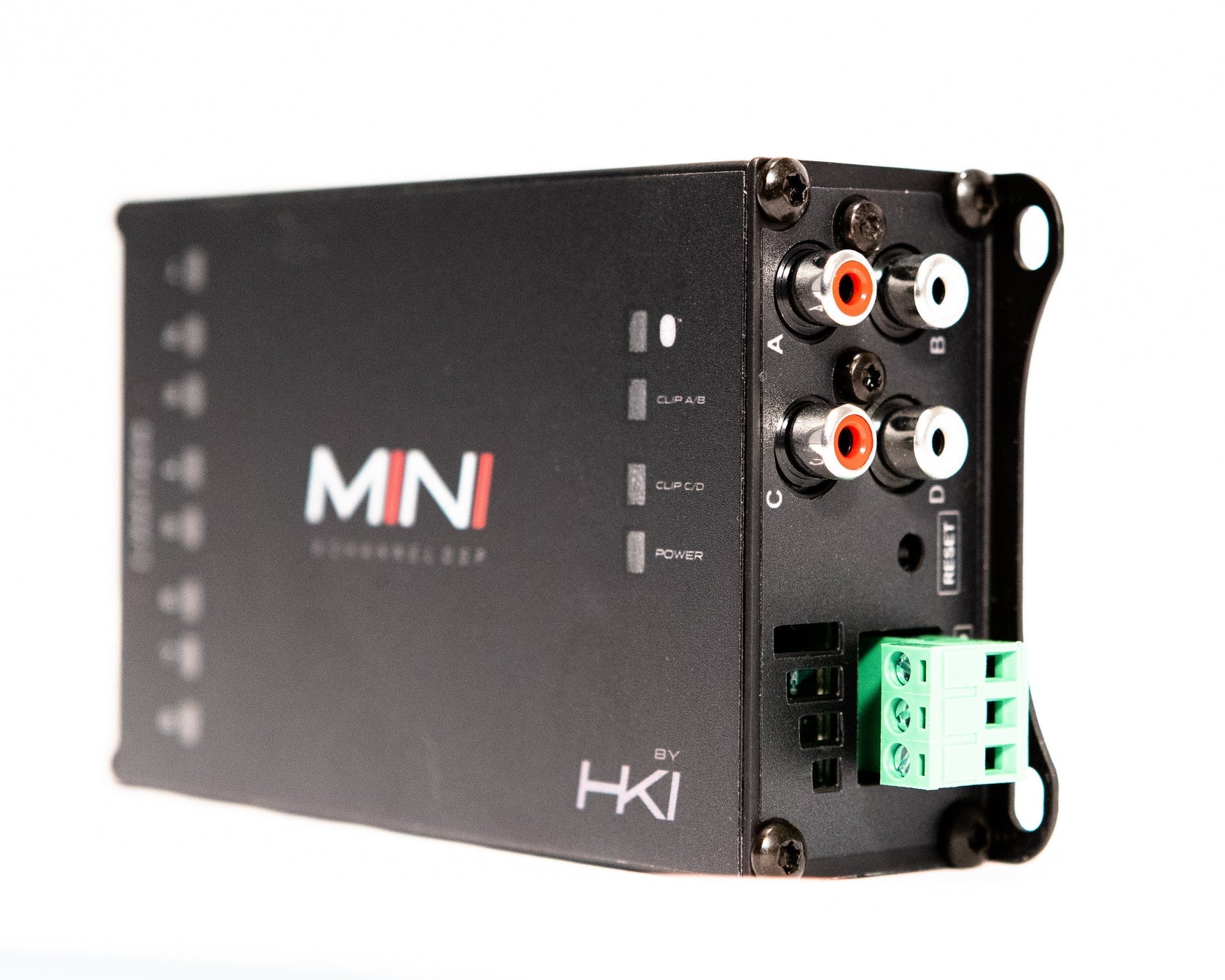

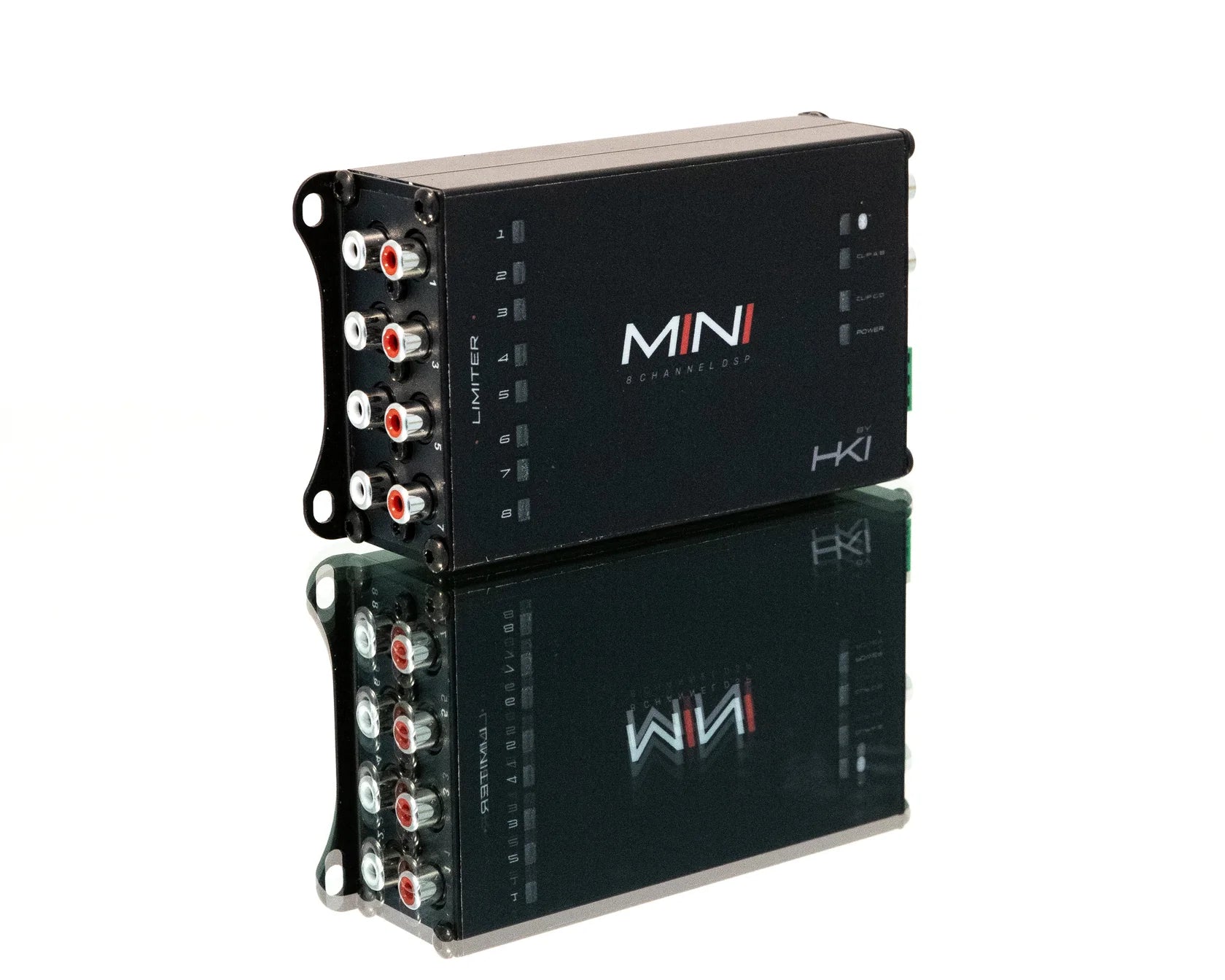

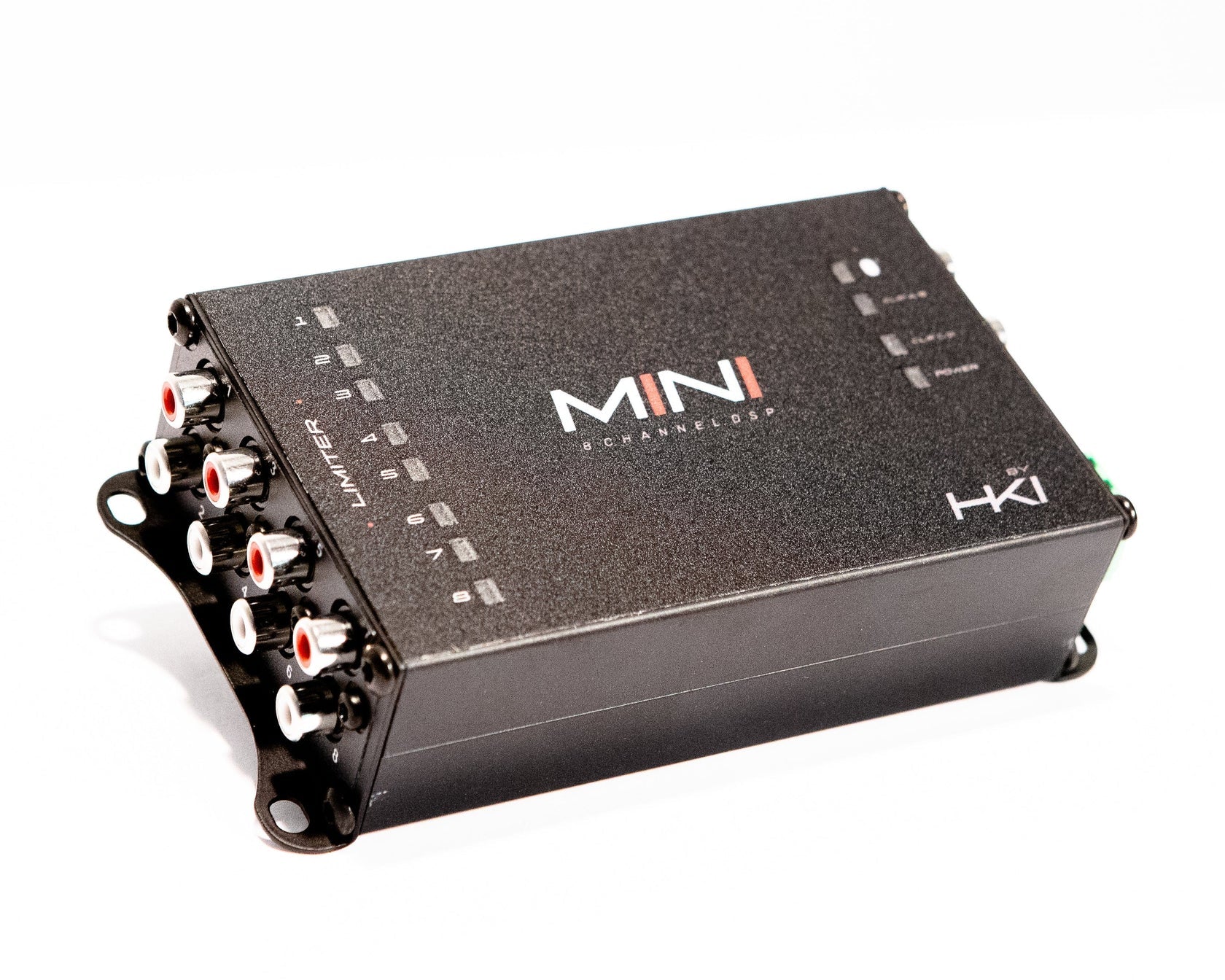

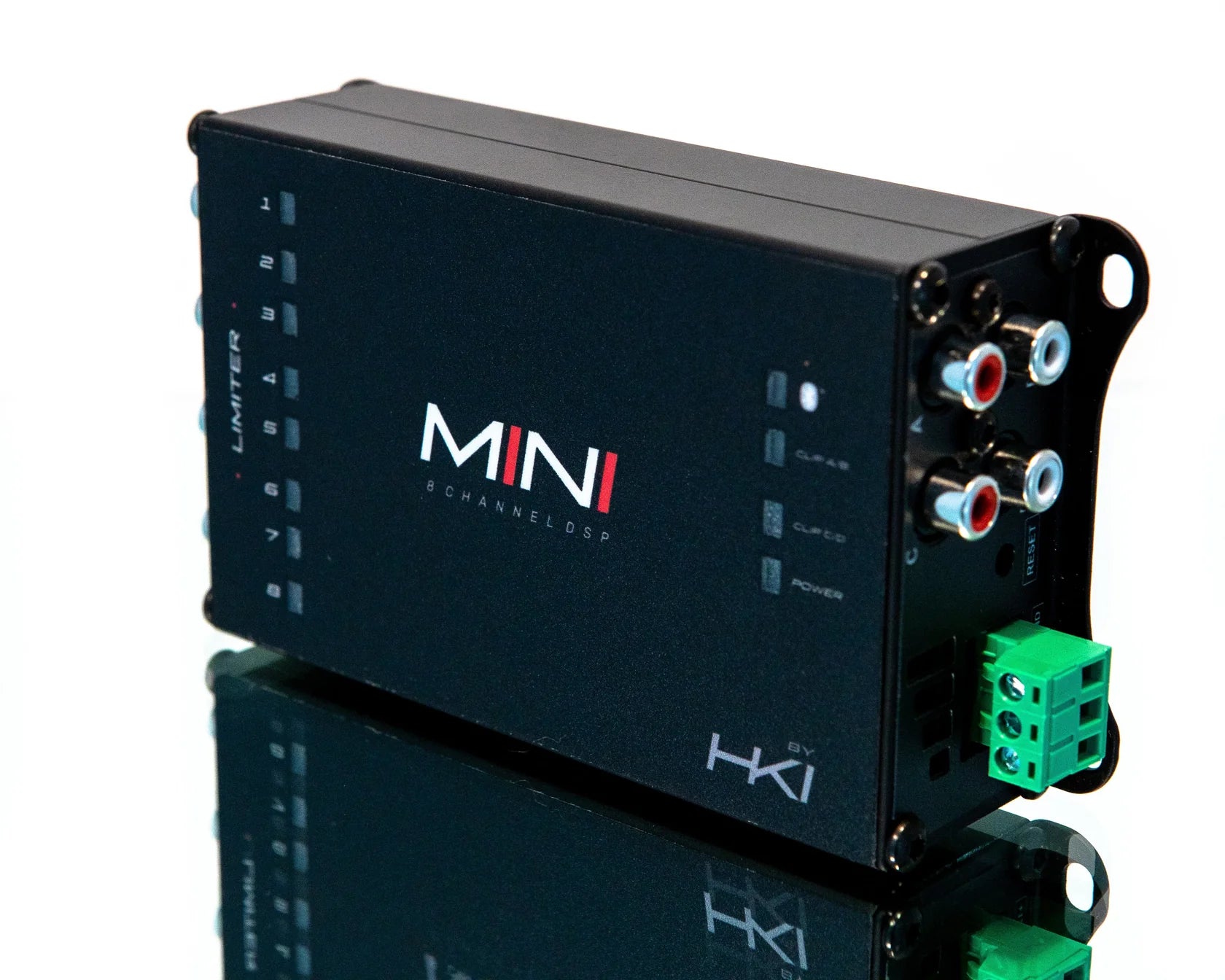

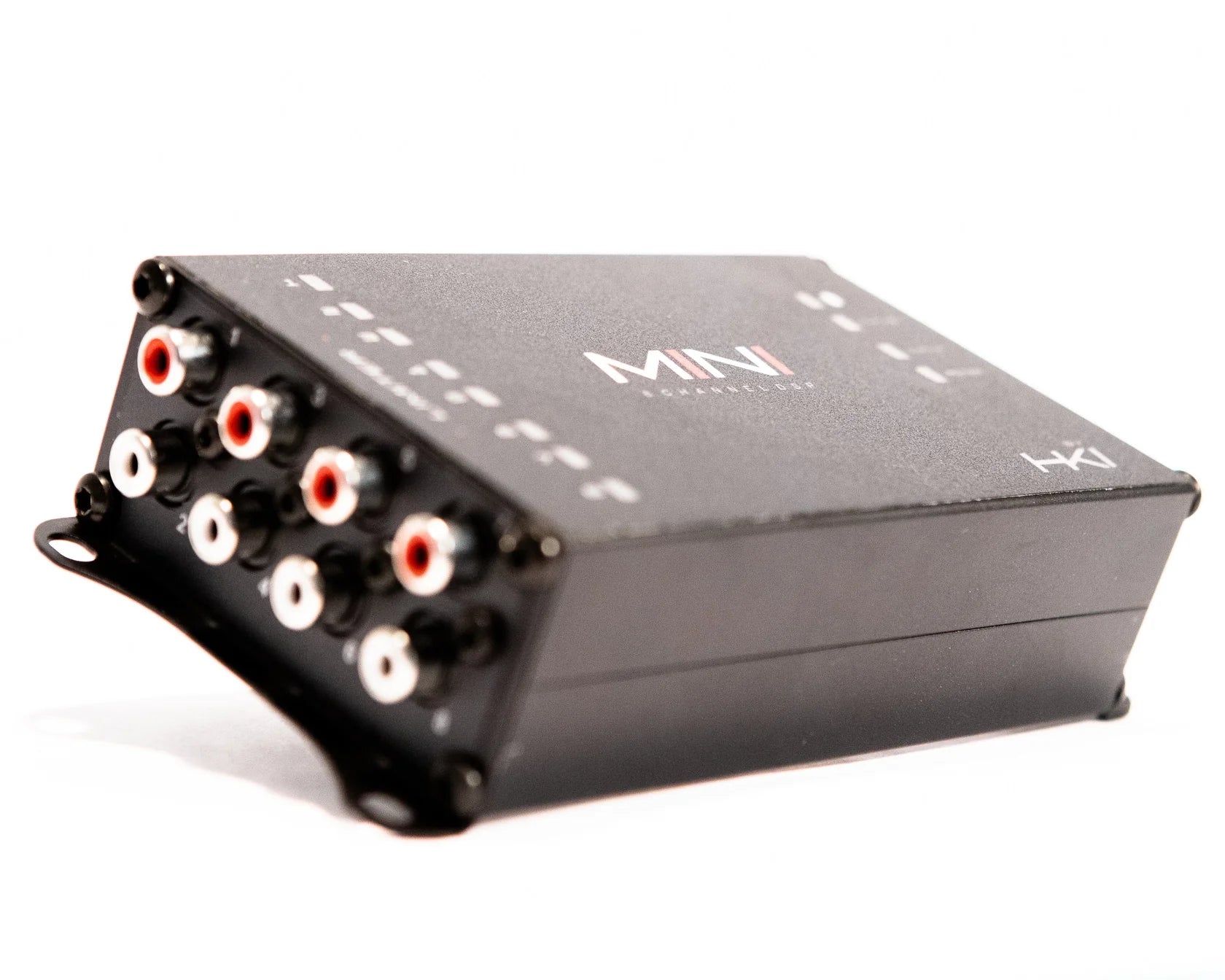

4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments.
8 Channel DSP
4 Balances RCA Inputs
Max Input Level: 4Vrms(+14dBu)
Input Impedance: 100KΩ

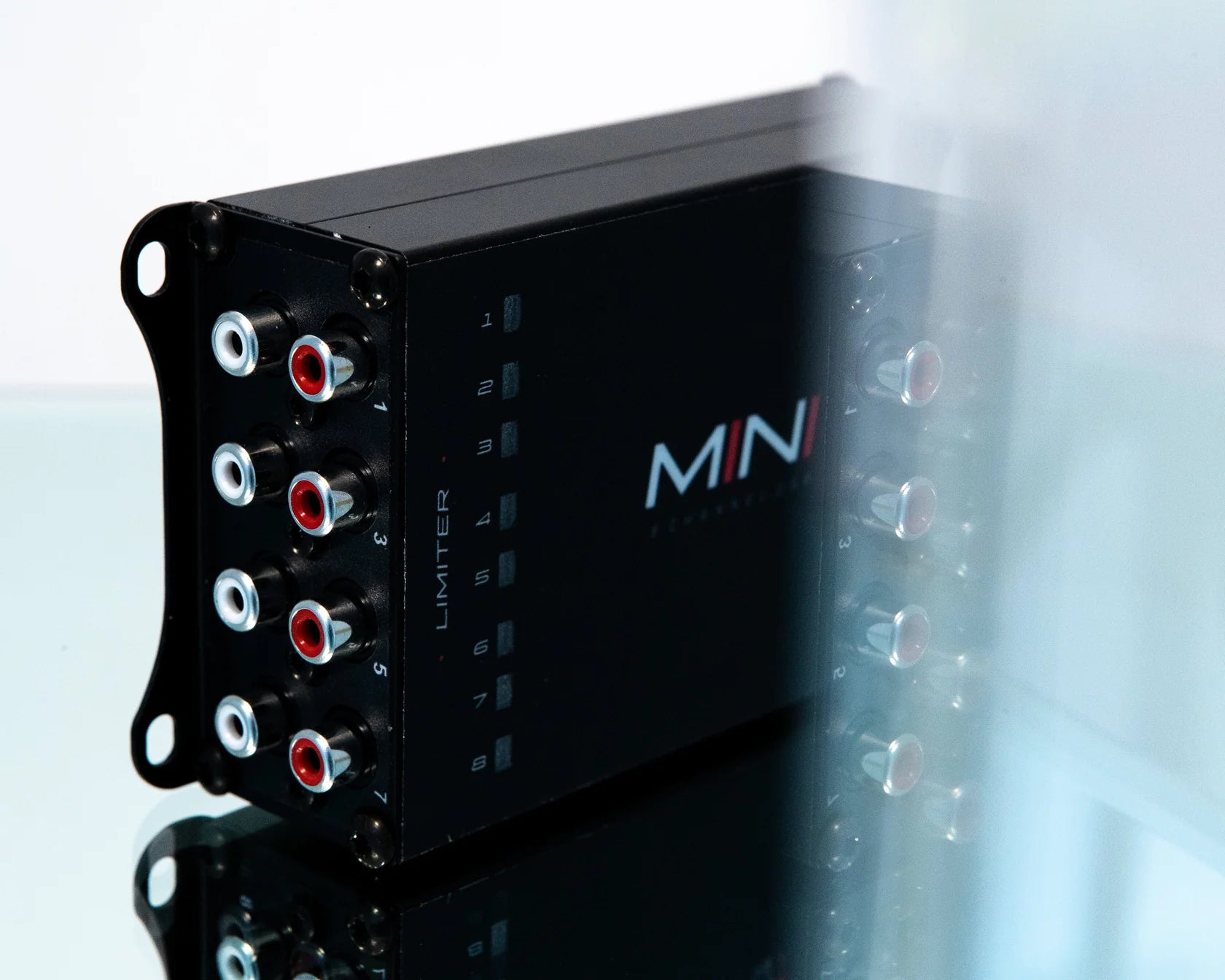

8 RCA Outputs
Max Output Level: 3.5Vrms(+13dBu)
Frequency Response: 10 Hz to 24 kHz (-1dB)
THD+N: <0.01%
Bit Rate: 32 Bits
Sampling Frequency: 96 kHz
Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct)
Input EQ: 15 bands
Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99)
