TECHNICAL SPECIFICATIONS

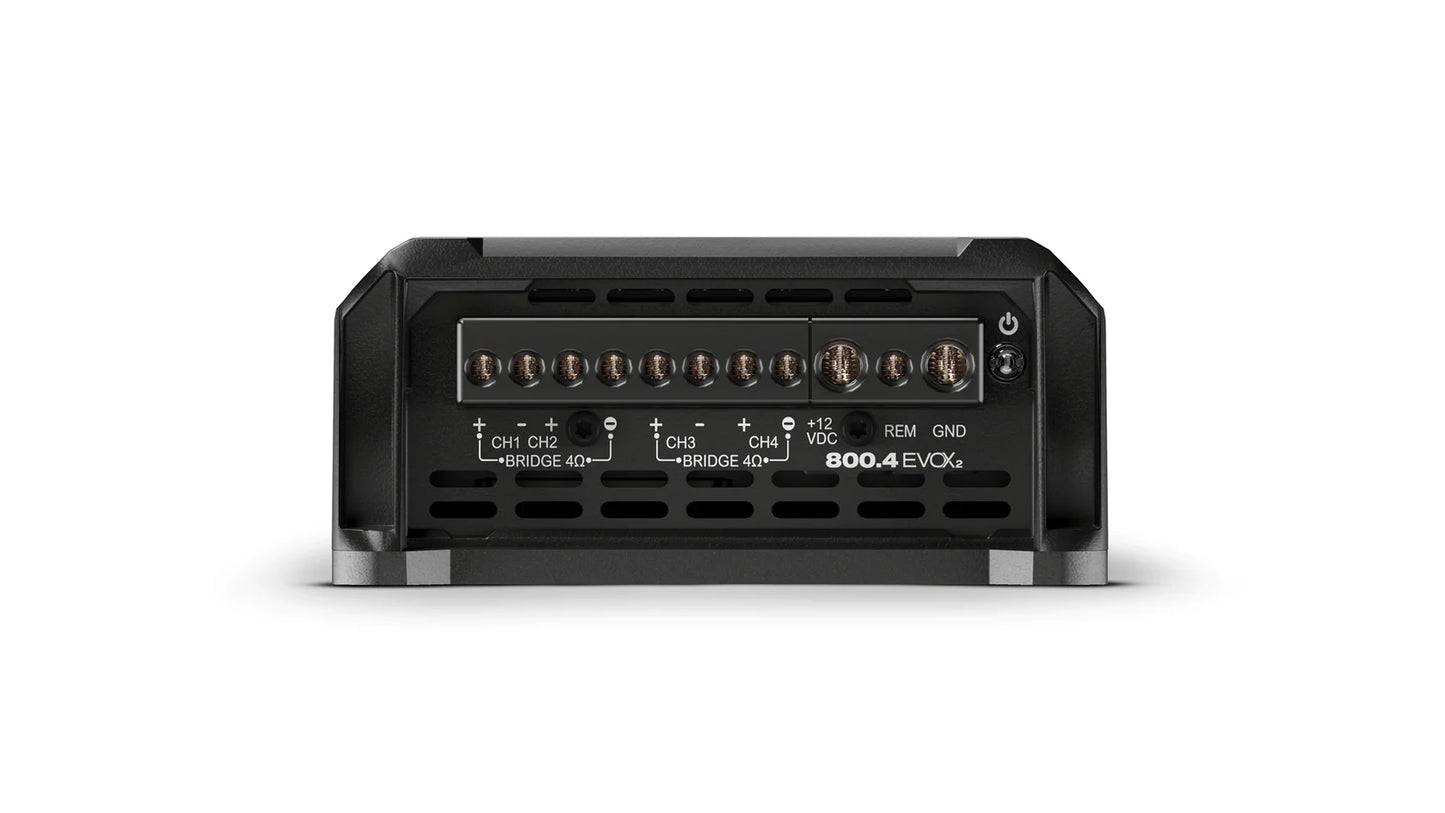

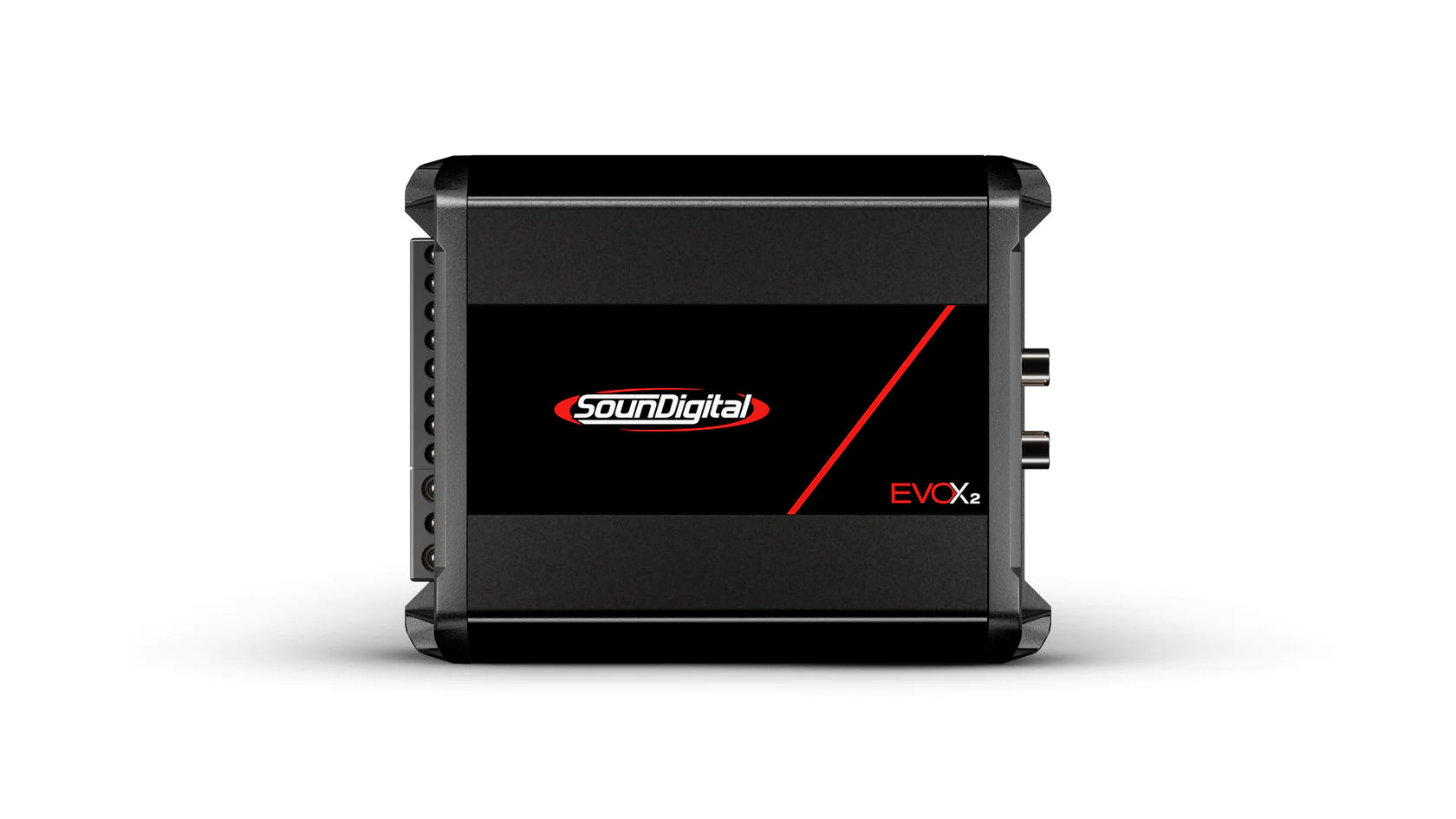

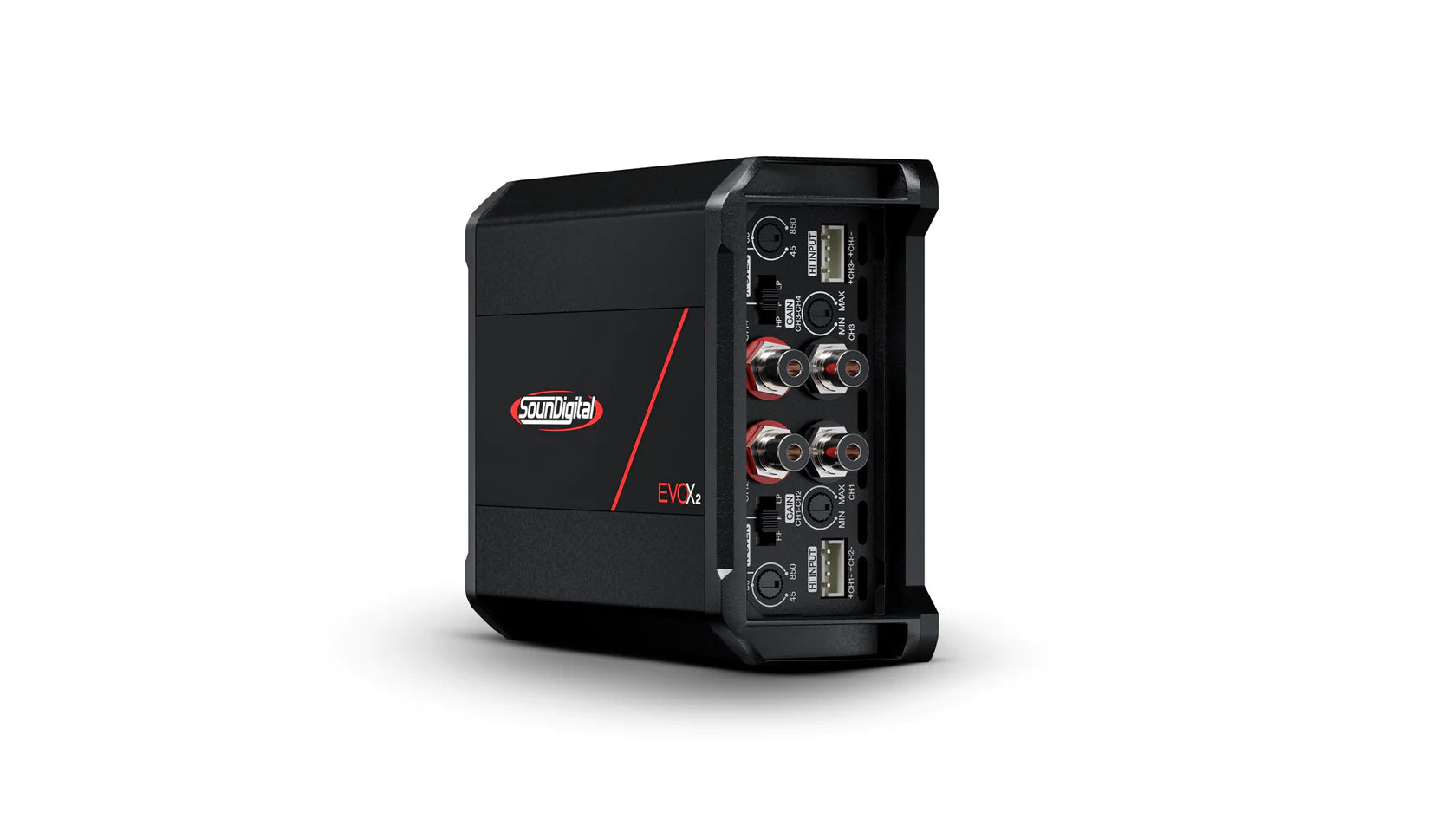

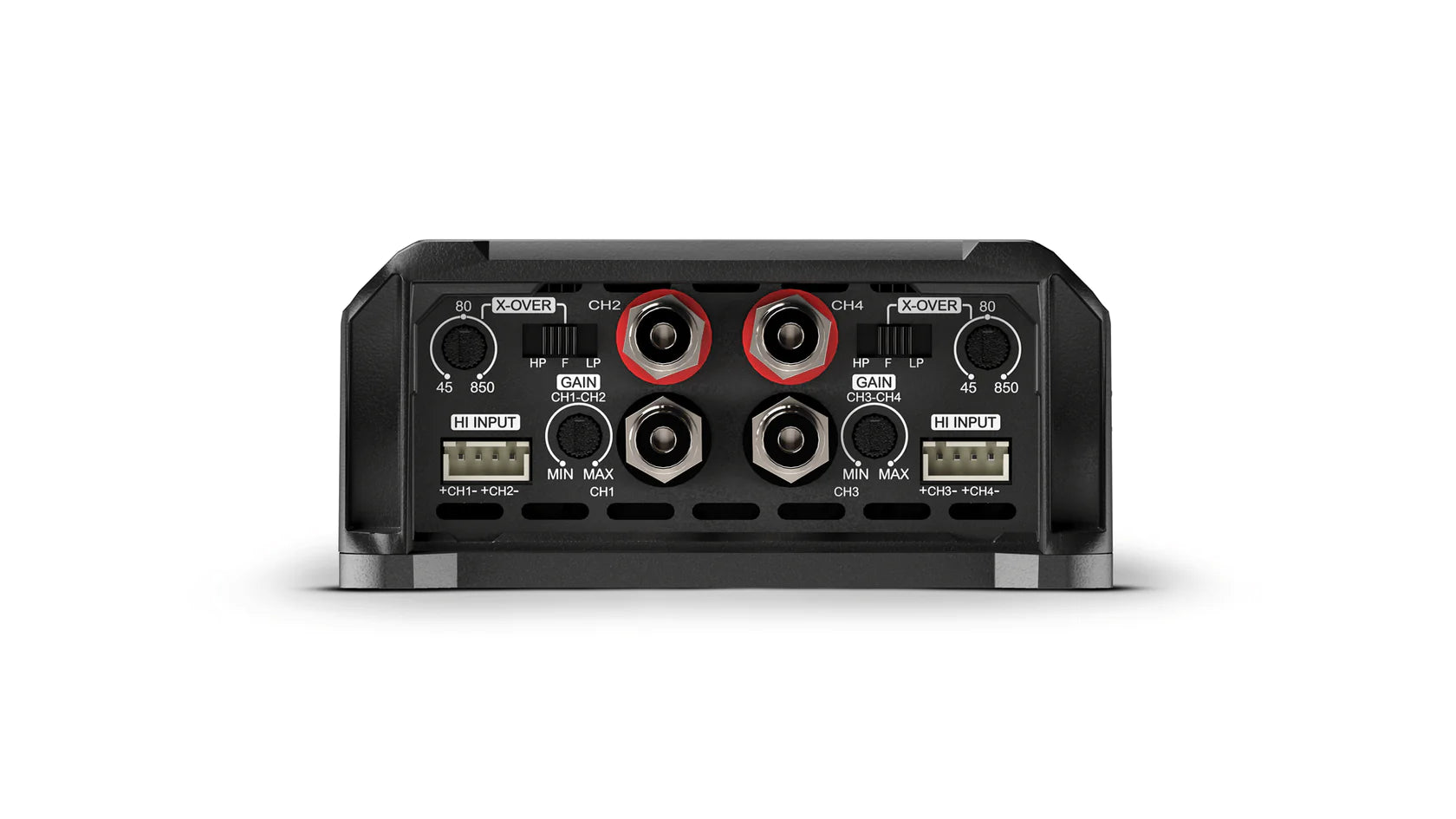

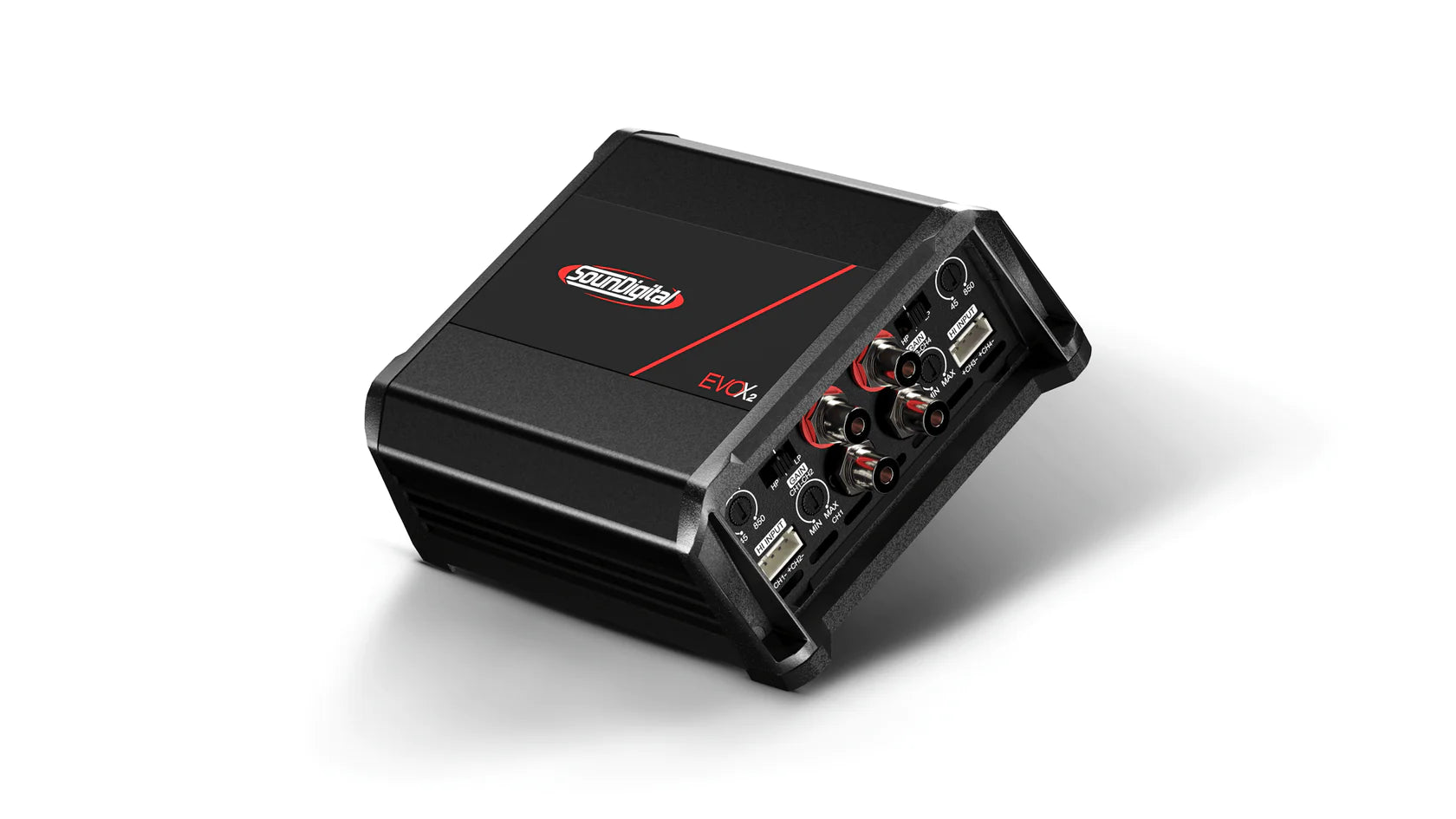

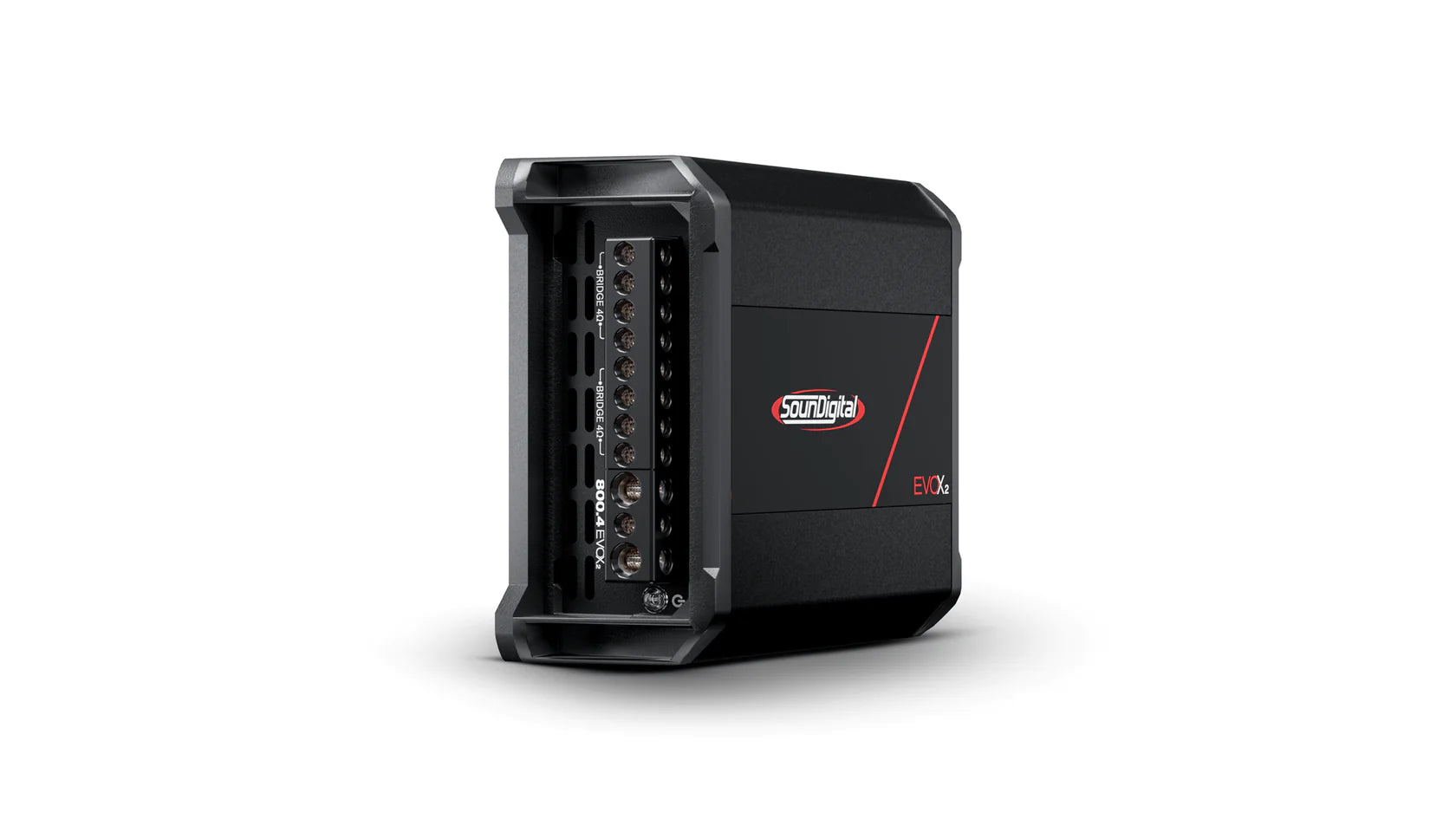

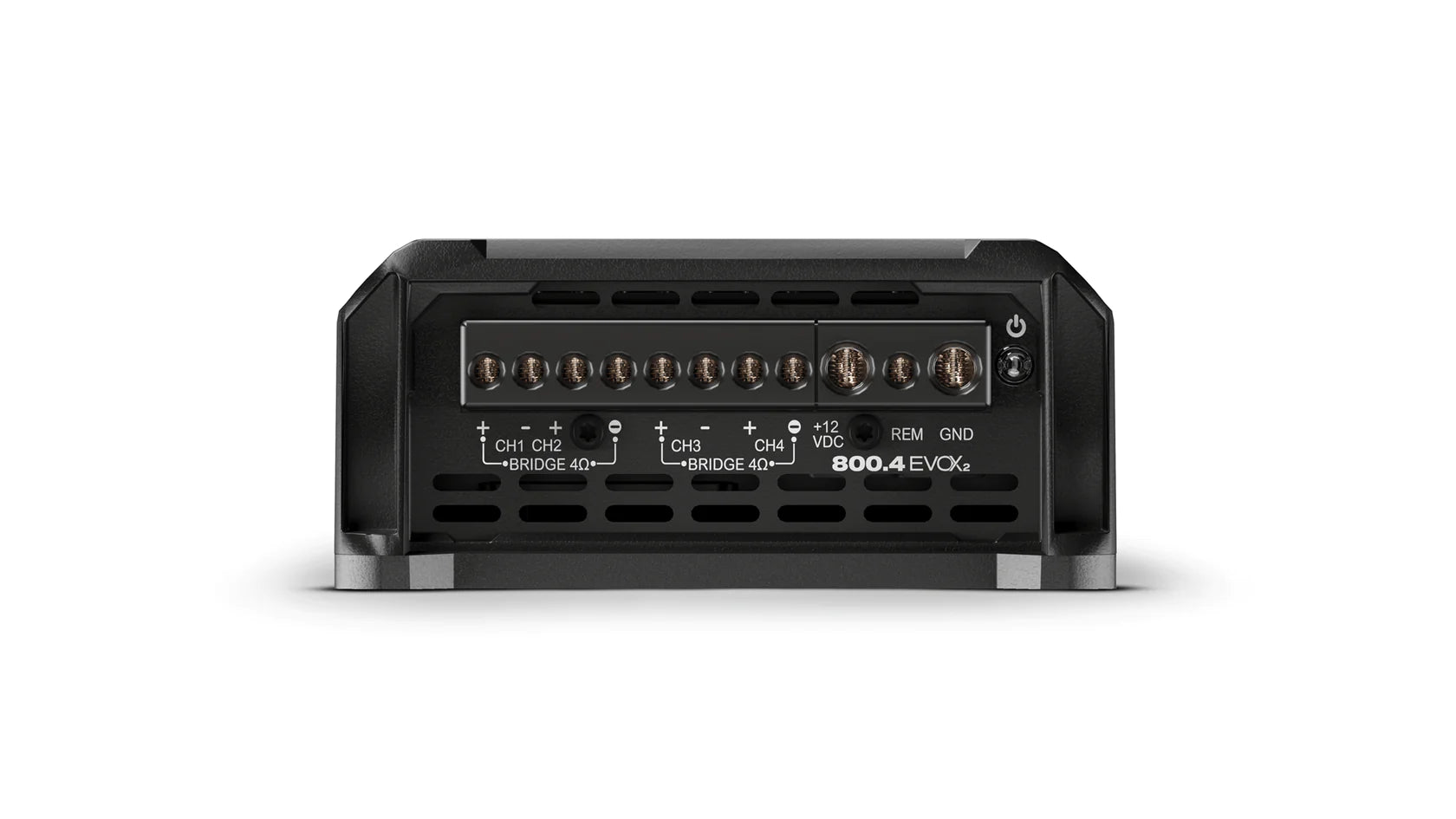

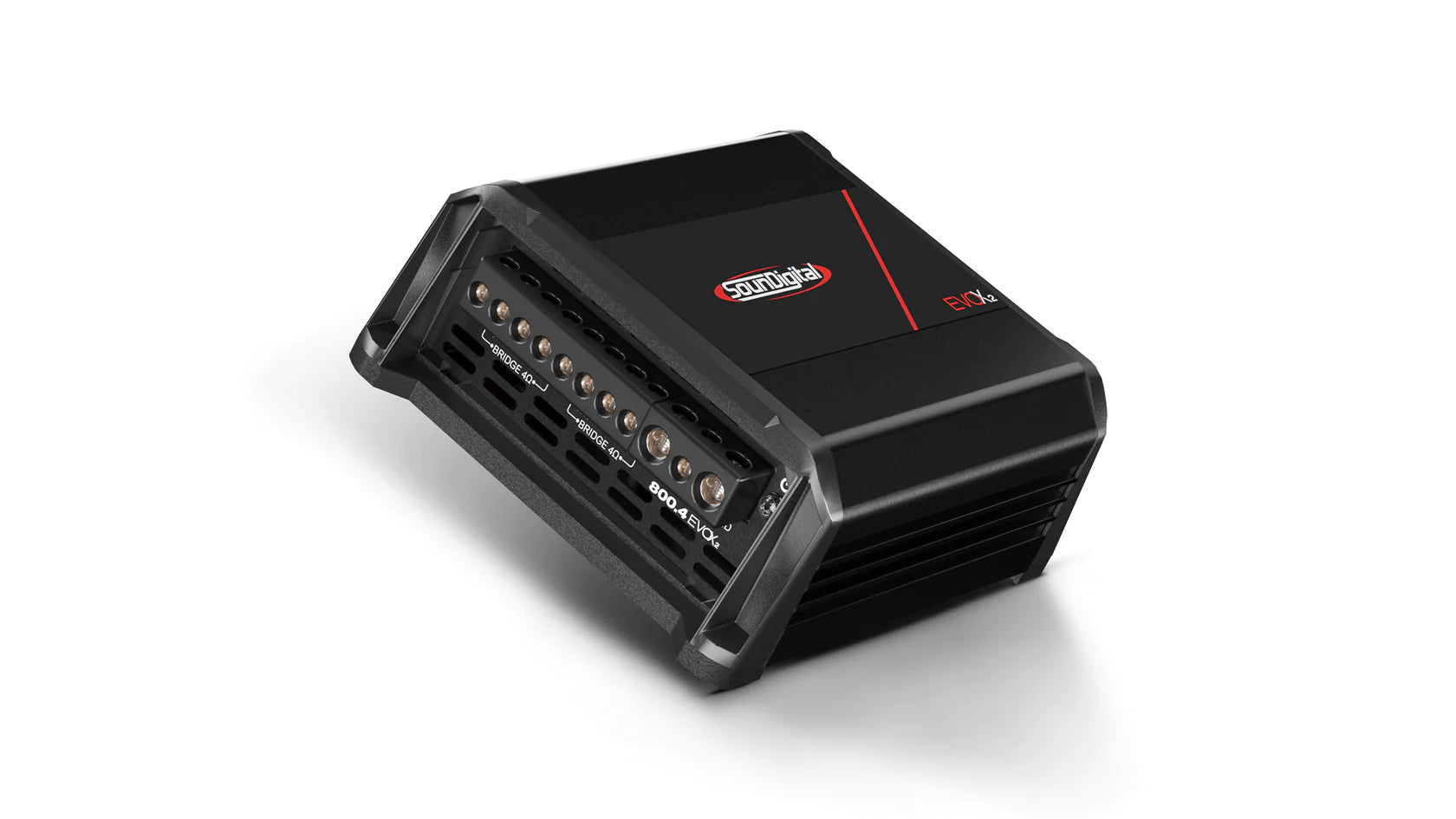

XP 800.4 –
Power Output @ 4Ω: 4 × 132 W RMS
Power Output @ 2Ω: 4 × 200 W RMS
Power Output @ 1Ω: N/A
Bridged Power Output @ 4Ω: 2 × 400 W RMS
Bridged Power Output @ 2Ω: N/A
Operating Voltage: 9V – 16V
Current Draw (Music): 35 A
Maximum Current Draw: 70 A
Recommended Fuse (Music): 40 A
Frequency Response (-3 dB): 5 Hz – 34 kHz
Signal-to-Noise Ratio (SNR): 91 dB
High-Pass Crossover (HPF): 45 Hz – 850 Hz
Low-Pass Crossover (LPF): 45 Hz – 850 Hz
THD + N (at 10% Rated Power): 0.1%
Recommended Battery: 60 Ah
Power Cable: 7 AWG
Speaker Cable: 15 AWG
Product Dimensions: 14.5 × 11.3 × 5.1 cm (or 14.5 × 11.3 × 5.0 cm, depending on the final specification)
