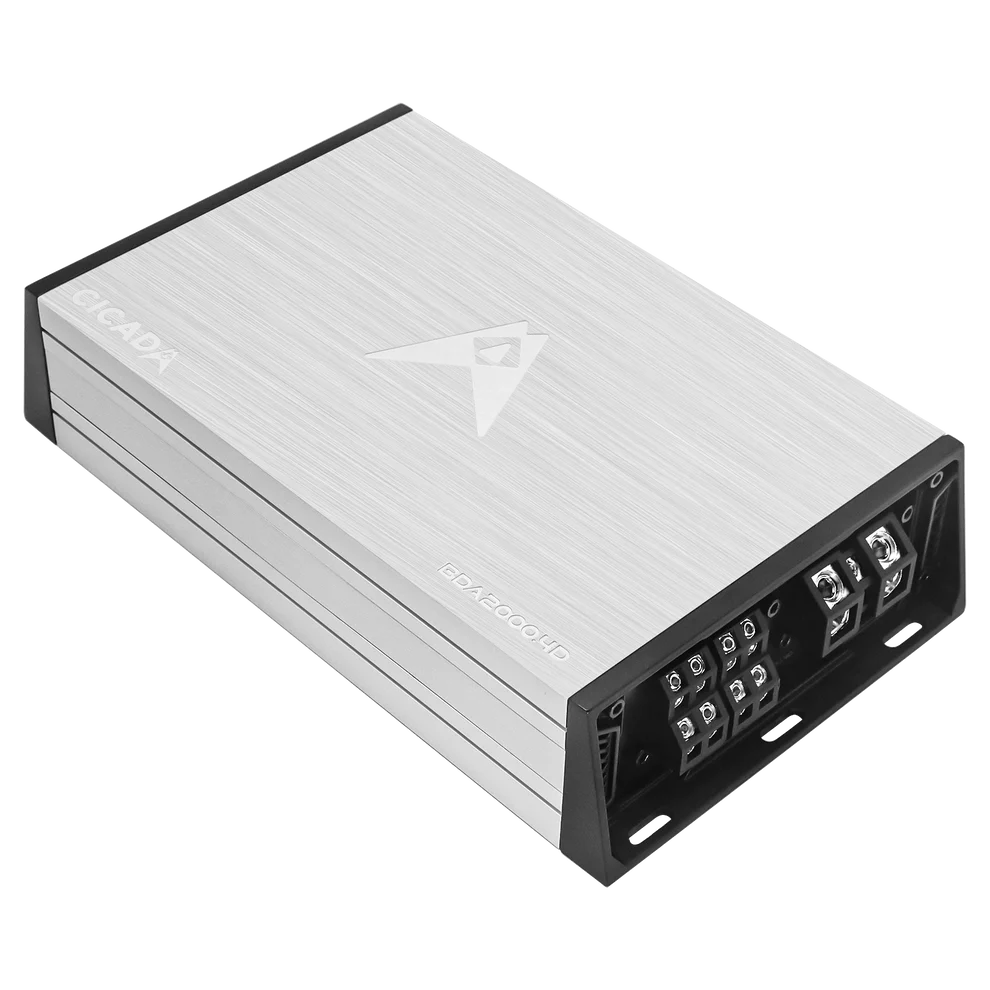

BDA2000.4D Cicada 500w x 4 Amplifier

BDA2000.4D

4 CHANNEL POWER AMPLIFIER
Requires Lithium Battery Upgrade / 4 AWG Power Wire

4 X 275 WRMS into 4 ohms @ 12.5 Vdc
4 X 331 WRMS into 4 ohms @ 14.4 Vdc
4 X 450 WRMS into 2 ohms @ 12.5 Vdc
4 X 542 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 866 WRMS into 4 ohms @ 12.5 Vdc
2 X 1044 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3dB THD < 0.5%
Operating Voltage: 8V – 16V
Current Draw (Music): 60 A
Current Draw (Max): 240 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91dB
Crossover LPF/FULL/HPF: 30 TO 300Hz
Slope:12dB per octave
Gain: 0.2V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 9.14 x 5.37 x 2.1 in / 232 x 136.4 x 54 mm
