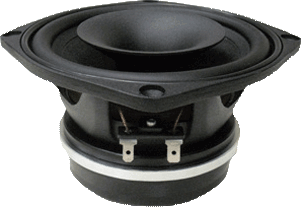

BEYMA 5CX200ND/N - 5" COAXIAL SPEAKER ( sold individual )

BEYMA 5CX200ND/N - 5" COAXIAL SPEAKER

THE BEYMA 5CX200ND/N COAXIAL SPEAKER HAS A 5" CAST FRAME & 1" EXIT HIGH FREQUENCY COMPRESSION DRIVER
HANDLES 150 WATTS AES & 300 WATTS PROGRAM W/ A FREQUENCY RANGE FROM 75HZ TO 20KHZ
FEATURES A DEMODULATION RING FOR LOWER DISTORTION & A LIGHTWEIGHT NEODYMIUM MAGNET THAT WEIGHS ONLY 3.53 lbs.
DESIGNED WITH EXCLUSIVE BEYMA MMS TECHNOLOGY & CONEX SPIDER FOR HIGHER CONSISTENCY
EXCELLENT OFF-AXIS RESPONSE OF 70º CONICAL DISPERSION
CONCENTRIC MOUNTING REDUCES PHASE PROBLEMS & PROVIDES A SINGLE POINT SOURCE
FOR ALL HIGH QUALITY SOUND SINGLE POINT SOURCE APPLICATIONS INCLUDING HOUSE OF WORSHIP, STUDIO MONITORS, HOME THEATER SYSTEMS, MOVIE THEATERS, SMALL PA SYSTEMS, ETC.
THE NEW BEYMA 5CX200ND/N COAXIAL SPEAKER SOUNDS VERY SMOOTH AND HAS AN EXCELLENT OFF AXIS RESPONSE!

Beyma 5CX200Nd/N

BEYMA 5CX200Nd/N



Item Price: $375



5CX200Nd/N

Specifications

Nominal Basket Diameter

5" / 125mm

Impedance

8 ohms

AES Power Rating (LF/HF)

150 Watts / 40 Watts

Program Power (LF/HF) 300 Watts / 80 Watts
Frequency Response

75Hz - 20kHz

High Frequency Sensitivity (1W/1m)

102dB

Low Frequency Sensitivity (1W/1m) 92.5dB
Voice Coil Diameter

1.5" / 38.5mm

Recom. Enclosure Volume .35-.71 ft3 / 10-20 Liters
Voice Coil Length 14 mm
Air Gap Height 6 mm
X Damage (peak to peak) 19 mm
BL Factor 7.32 N/A
Mounting Information

Overall Diameter 6.1" / 155mm
Bolt Circle Diameter 5.57" / 141.5mm
Baffle Cutout Diameter-
- Front Mount 4.69" / 119.2mm
- Rear Mount 4.69" / 119.2mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.02 ft3 / .5 Liters
Overall Depth 3.74" / 94.9mm
Net Weight 3.53 lb. / 1.6 kg.
Shipping Weight 3.68 lb. / 1.67 kg.
Materials

Low Frequency Woofer

Basket Die-Cast Aluminum
Cone Paper
Surround Santoprene
Spider Conex
Voice Coil Aluminum
Magnet Neodymium
High Frequency Tweeter

Diaphragm Polyester
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Magnet Neodymium
Thiele-Small Parameters

Resonant Frequency (fs) 75 Hz
Impedance (Re) 5.2 ohms
Coil Inductance (Le) .2 mH
Mechanical Q (Qms) 10.04
Electrical Factor (Qes) .28
Total Q (Qts) .28
Comp. Equivalent Vol. (Vas) .32 ft3 / 9.07 Liters
Voice Coil Overhang (Xmax) 5.7 mm
Surface Area of Cone (Sd)m2 0.0095m2
Diaphragm Mass (Mms) 6 Grams
Reference Efficiency 1.3%
Displacement Volume (Vd) 48.1 cm3
Frequency Response & Distortion Curves

Beyma 5CX200Nd Frequency

Impedance Curve

Beyma 5CX200Nd Impedance

Off-Axis Frequency Response

Beyma 5CX200Nd Off Axis

Mounting Dimensions

Beyma 5CX200Nd Drawing
