BEYMA 6G40Nd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER (Sold individual)

BEYMA 6G40Nd - NEODYMIUM 6.5" MID-BASS / MIDRANGE SPEAKER

THE BEYMA 6G40ND 6.5" SPEAKER HANDLES 170 WATTS AES & 340 WATTS PROGRAM POWER HANDLING
NEW BASKET W/ A SPECIAL SHAPE IS DESIGNED FOR LINE ARRAY SYSTEMS
FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET
WIDE RESPONSE & VERY LOW DISTORTION REPRODUCES A CLEAR & TRANSPARENT SOUND
DESIGNED FOR THE HIGHEST QUALITY LINE ARRAY SPEAKER SYSTEMS & 2 OR 3-WAY SPEAKER SYSTEMS
THE BEYMA 6G40ND DELIVERS A SMOOTH MID-BASS SOUND WITH GOOD POWER HANDLING OF 340 WATTS PROGRAM!

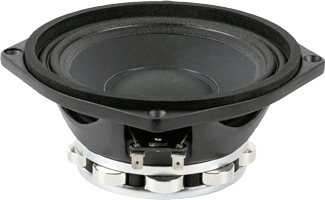

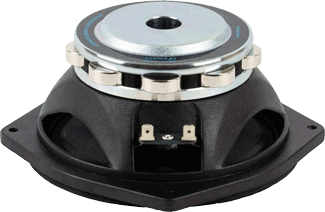

Beyma 6G40NdBeyma 6G40Nd midbass speaker

BEYMA 6G40ND




WOOFER MODEL - 6G40Nd

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

8 ohms

AES Power Rating

170 Watts

Program Power 340 Watts
Frequency Response

70Hz - 9.0KHz

Sensitivity (1W/1m)

95dB

Voice Coil Diameter

2" / 51.7mm

Voice Coil Length 9mm
Air Gap Height 7mm
X Damage (peak to peak) 20mm
Bl Factor (BL) 11 N/A
Magnetic Assembly Weight 3.3 lb. / 1.5 kg.
Mounting Information
Overall Diameter 7.38" / 187.5mm
Bolt Circle Diameter 6.77" / 172mm
Baffle Cutout Diameter-
- Front Mount 5.74" / 146mm
- Rear Mount 5.74" / 146mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.019 ft3 / .5 Liters
Overall Depth 2.97" / 75.5mm
Net Weight 3.74 lb. / 1.7 kg.
Shipping Weight 5.06 lb. / 2.3 kg.
Materials

Basket Die Cast Aluminum
Cone Paper
Surround Foam
Voice Coil Aluminum Wire
Former Fiberglass
Metal Parts Anti-Corrosion
Magnet High Energy Neodymium
Thiele-Small Parameters

Resonant Frequency (fs) 88 Hz
Impedance (Re) 6.2 ohms
Coil Inductance (Le) .6 mH
Mechanical Q (Qms) 9.1
Electrical Factor (Qes) .34
Total Q (Qts) .33
Comp. Equivalent Vol. (Vas) .25 ft3 / 7.2 Liters
Voice Coil Overhang (Xmax) 1.0 mm
Reference Efficiency 1.4%
Displacement Volume 14 cm3
FREQUENCY RESPONSE & DISTORTION CURVES



MOUNTING INFORMATION
