BEYMA 6MCF200Nd sealed back 6.5 carbon fiber (sold individual )

sealed back BEYMA 6MCF200Nd - 6.5" CLOSED BACK CARBON FIBER NEODYMIUM MIDRANGE SPEAKER

NEW BEYMA 6MCF200Nd 6.5" MIDRANGE SPEAKER THAT HANDLES A POWERFUL 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
FEATURES A CLOSED BACK CAST ALUMINUM FRAME, LIGHTWEIGHT NEODYMIUM MAGNET & STRONG CARBON FIBER LOADED CONE
COPPER SHORTING RING FOR A FLATTER MORE EXTENDED RESPONSE AND LOWER DISTORTION
2" ALUMINUM VOICE COIL & LIGHTWEIGHT NEODYMIUM MAGNET
VERY LOW HARMONIC DISTORTION W/ AN EXTREMELY LINEAR FREQUENCY RESPONSE
DESIGNED FOR THE HIGHEST QUALITY MIDRANGE SPEAKER SYSTEMS INCLUDING LINE ARRAY SYSTEMS
CLOSED BACK NEODYMIUM 6.5" SPEAKER WITH A CARBON FIBER CONE WORKS WELL IN HORN LOADED, LINE ARRAY & 3-WAY SPEAKER SYSTEMS!

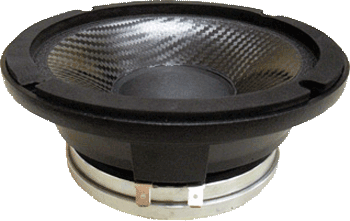

Beyma 6MCF200Nd

BEYMA 6MCF200Nd


WOOFER MODEL - 6MCF200Nd

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

8 ohms

AES Power Rating

200 Watts

Program Power 400 Watts
Frequency Response

400Hz - 12.0KHz

Sensitivity (1W/1m)

97dB

Voice Coil Diameter

2" / 51.7mm

Voice Coil Length 9.2 mm
Air Gap Height 9 mm
Mounting Information
Overall Diameter 6.85" / 174mm
Bolt Circle Diameter 6.22" / 158mm
Baffle Cutout Diameter-
- Front Mount 5.75" / 146mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.026 ft3 / .75 Liters
Overall Depth 2.95" / 75mm
Net Weight 5.07 lb. / 2.3 kg.
Shipping Weight 5.95 lb. / 2.7 kg.
Materials

Basket Die Cast Aluminum
Cone Carbon Fiber
Voice Coil Aluminum
Magnet Neodymium
Thiele-Small Parameters

Resonant Frequency (fs) 410 Hz
Impedance (Re) 6.3 ohms
Coil Inductance (Le) .25 mH
Mechanical Q (Qms) 5.9
Electrical Factor (Qes) .72
Total Q (Qts) .64
Comp. Equivalent Vol. (Vas) .88 ft3 / 25 Liters
Voice Coil Overhang (Xmax) 2.5 mm
Moving Mass (Mms) 16 Grams
BL Factor (T-M) 19.2
Reference Efficiency 2.4%
Displacement Volume 35 cm3
FREQUENCY RESPONSE & DISTORTION CURVES

Beyma 6MCF200Nd Frequency
IMPEDANCE CURVE
Beyma 6MCF200Nd Impedance
