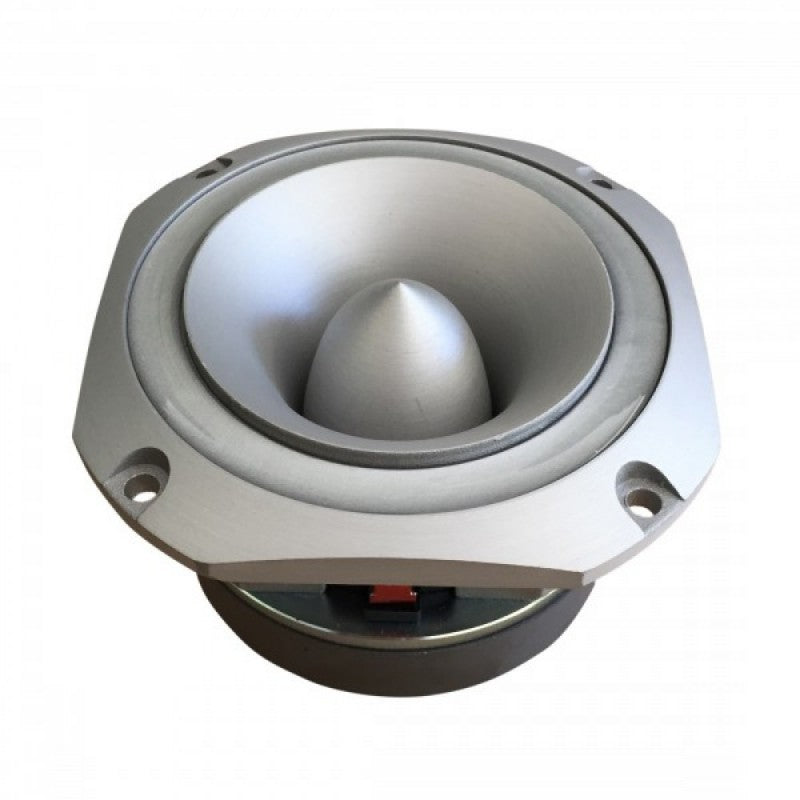

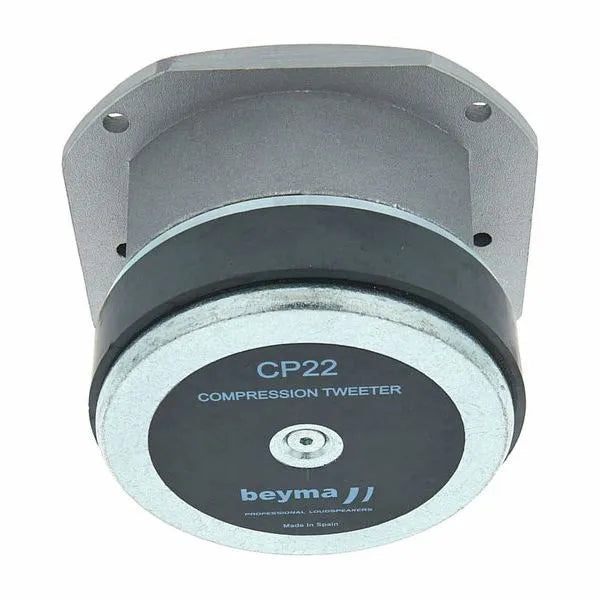

BEYMA CP22MF - CP22 1" H.F. BULLET TWEETER

Impedance

8 ohms

Minimum Impedance

8.5 ohms @ 9.0 khz

D.C. Resistance 6.1 ohms
AES Power Rating 35 Watts
Program Power 70 Watts
Sensitivity (1W/1m) 107dB SPL
Frequency Response

4kHz - 20kHz

Recommended Crossover 5.0 kHz or higher
Dispersion (H x V) 40° Conical
Voice Coil Diameter 1.5" / 37.6mm
Magnetic Assembly Weight 2.64 lb. / 1.2 kg.
Flux Density 1.55T
BL Factor 5.2 N/A
Mounting Information

Overall Diameter 4" x 4" / 102mm x 102mm
Overall Depth 2.79" / 71mm
Baffle Cutout Dimensions 3.62" / 92mm
Bolt Circle Diameter 4.21" / 107mm
Net Weight 3.5 lb. / 1.6 kg.
Shipping Weight 3.75 lb. / 1.7 kg.
Materials

Diaphragm Aluminum
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Cooling Ferro Fluid
Magnet Ferrite
