BEYMA PRO6CFNd - NEODYMIUM 6.5" carbon fiber mid (sold individual )

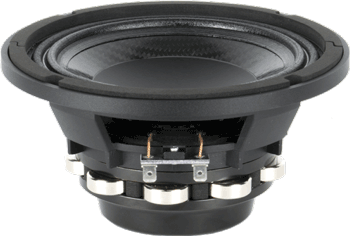

BEYMA PRO6CFNd - NEODYMIUM 6.5" EXTENDED RANGE SPEAKER

NEW BEYMA PRO6CFNd 6.5" EXTENDED RANGE SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
FEATURES A CARBON FIBER CONE FOR INCREASED CONE STRENGTH & MARINE TREATED PARTS
WIDE FREQUENCY RANGE FROM 95HZ TO 11.2KHZ & HIGH XMAX OF 6.0MM
ACOUSTICALLY BALANCED FREQUENCY RESPONSE & INVERTED DUST CAP
LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.2 LBS.
DESIGNED TO PLAY UPPER BASS, MIDRANGE AND HIGH FREQUENCIES UP TO 11.2KHZ
AVAILABLE IN 8 OHMS
THE BEYMA PRO6CFNd COVERS A WIDE FREQUNCY RANGE WITH GOOD POWER HANDLING OF 400 WATTS PROGRAM!

Beyma Pro6CFNd

BEYMA PRO6CFNd

WOOFER MODEL - PRO6CFNd

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

5 ohms

AES Power Rating

200 Watts

Program Power 400 Watts
Frequency Response

95Hz - 11.2KHz

Sensitivity (1W/1m)

93dB

Voice Coil Diameter

2" / 50.8mm

Voice Coil Length 14mm
Air Gap Height 7mm
X Damage (peak to peak) 20mm
Bl Factor (BL) 11.1 N/A
Mounting Information
Overall Diameter 6.8" / 174mm
Bolt Circle Diameter 6.2" / 158mm
Baffle Cutout Diameter-
- Front Mount 5.7" / 145mm
No. Of Mounting Holes 4
Overall Depth 3.8" / 96mm
Net Weight 4.2 lb. / 1.9 kg.
Shipping Weight 4.4 lb. / 2.0 kg.
Materials

Basket Die Cast Aluminum
Cone Carbon Fiber
Surround Treated Cloth
Dust Cap Shape Inverted
Voice Coil Copper
Former Fiberglass
Metal Parts Marine Treated
Magnet Neodymium
Thiele-Small Parameters

Resonant Frequency (fs) 94 Hz
Impedance (Re) 4.8 ohms
Coil Inductance (Le) .2 mH
Mechanical Q (Qms) 3.8
Electrical Factor (Qes) .43
Total Q (Qts) .39
Comp. Equivalent Vol. (Vas) .14 ft3 / 3.9Liters
Voice Coil Overhang (Xmax) 6.0 mm
Surface Area of Cone (Sd)m2 0.014m2
Moving Mass (Mms) 19 Grams
Reference Efficiency .7%
Displacement Volume 74 cm3
FREQUENCY RESPONSE & IMPEDANCE CURVE

Beyma Pro6CFNd Frequency

MOUNTING INFORMATION

Beyma Pro6CFNd
