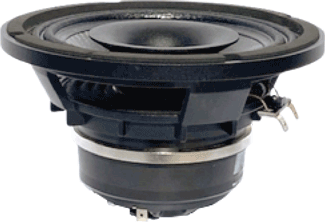

BEYMA PRO6FX240ND - 6.5" CARBON FIBER COAXIAL SPEAKER (sold individual )

BEYMA PRO6FX240ND - 6.5" CARBON FIBER COAXIAL SPEAKER

NEW BEYMA PRO6FX240ND COAXIAL SPEAKER INCLUDES A 6.5" CARBON FIBER CONE IN A CAST FRAME WOOFER & A LIGHTWEIGHT NEODYMIUM 1" EXIT HF COMPRESSION DRIVER
HANDLES A POWERFUL 200 WATTS AES & 400 WATTS PROGRAM & HAS A FREQUENCY RANGE FROM 100HZ TO 20KHZ
COMMON NEODYMIUM MAGNET FOR BOTH THE LOW FREQUENCY & HIGH FREQUENCY REDUCES PHASE PROBLEMS & PROVIDES A SINGLE POINT SOURCE
HIGH FREQUENCY DRIVER UTILIZES A NEW PM-4 MATERIAL FOR A SMOOTH SOUND
CONEX SPIDER & DEMODULATION RING FOR THE LOW FREQUENCY TO FLATTEN RESPONSE AND LOWER DISTORTION
LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 4.18 lbs.
EXCELLENT OFF-AXIS RESPONSE OF 70º CONICAL DISPERSION
FOR ALL HIGH QUALITY SOUND SINGLE POINT SOURCE APPLICATIONS INCLUDING MOTORCYCLE BAGS, HIGH QUALITY CAR SPEAKER SYSTEMS, MOVIE THEATERS, SMALL PA SYSTEMS, ETC.
DESIGNED FOR USE WITH THE FD2CX 2-WAY CROSSOVER
NEW BEYMA Pro6FX240Nd COAXIAL SPEAKER HAS PRECISE TIME ALIGNMENT AND IS VERY SMOOTH & DETAILED SOUNDING!

Beyma Pro6FX240Nd

NEW BEYMA PRO6FX240ND


COAXIAL MODEL

PRO6FX240ND

Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

8 ohms

Low Frequency AES Power Rating

200 Watts

Low Frequency Program Power 400 Watts
High Frequency AES Power Rating 40 Watts
High Frequency Program Power 80 Watts
Frequency Response

100Hz - 20kHz

High Frequency Sensitivity (1W/1m)

103dB

Low Frequency Sensitivity (1W/1m) 94dB
LF Voice Coil Diameter

2" / 50.8mm

HF Voice Coil Diameter 1.75" / 44.4mm
Recom. Crossover Frequency 2.5kHz or higher @ 12dB/oct.
Voice Coil Length 14 mm
Air Gap Height 7 mm
X Damage (peak to peak) 26 mm
BL Factor 9.1 N/A
Mounting Information

Overall Diameter 6.9" / 174mm
Bolt Circle Diameter 6.2" / 158mm
Baffle Cutout Diameter 5.71" / 145.1mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.02 ft3 / .55 Liters
Overall Depth 4.0" / 103.1mm
Net Weight 4.2 lb. / 1.9 kg.
Shipping Weight 4.6 lb. / 2.1 kg.
Materials

Low Frequency Woofer

Basket Die-Cast Aluminum
Cone Carbon Fiber
Surround Two Roll Treated Cloth
Voice Coil Aluminum
Spider Conex
Magnet Neodymium
High Frequency Tweeter

Diaphragm PM-4
Voice Coil Edgewound Aluminum Ribbon
Voice Coil Former Kapton
Magnet Neodymium
Thiele-Small Parameters

Resonant Frequency (fs) 100 Hz
Impedance (Re) 4.6 ohms
Coil Inductance (Le) .24 mH
Mechanical Q (Qms) 3.5
Electrical Factor (Qes) .56
Total Q (Qts) .48
Comp. Equivalent Vol. (Vas) .14 ft3 / 4 Liters
Voice Coil Overhang (Xmax) 5.5 mm
Diaphragm Mass (Mms) 15 Grams
Surface Area of Cone (Sd)m2 0.0135m2
Reference Efficiency .83%
Displacement Volume (Vd) 74 cm3
Frequency Response & Impedance Curves

Beyma Pro6FX240Nd Frequency

Mounting Dimensions

Beyma Pro6FX240Nd Drawing
