BEYMA PRO8CF - CARBON FIBER 8" MID-BASS SPEAKER (sold individual )

BEYMA PRO8CF - CARBON FIBER 8" MID-BASS SPEAKER

NEW BEYMA PRO8CF 8" CARBON FIBER MID-BASS SPEAKER HANDLES 300 WATTS AES & 600 WATTS PROGRAM
FEATURES A CARBON FIBER CONE FOR INCREASED CONE STRENGTH & MARINE TREATED PARTS
WIDE FREQUENCY RANGE FROM 80HZ TO 2KHZ & HIGH XMAX OF 6.3MM
ACOUSTICALLY BALANCED FREQUENCY RESPONSE & INVERTED DUST CAP
DESIGNED TO PLAY MIDBASS & MIDRANGE THAT IS CLEAR AND LOUD
AVAILABLE IN 4 OHMS
BEYMA PRO8CF MIDBASS SPEAKER HAS A STRONG CARBON FIBER CONE WITH GOOD POWER HANDLING OF 600 WATTS PROGRAM!

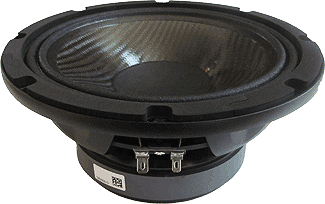

Beyma Pro8CF

BEYMA PRO8CF

WOOFER MODEL - PRO8CF

Specifications

Nominal Basket Diameter

8" / 200mm

Impedance

4 ohms

AES Power Rating

300 Watts

Program Power 600 Watts
Frequency Response

80Hz - 2KHz

Sensitivity (1W/1m)

93dB

Voice Coil Diameter

2" / 50.8mm

Voice Coil Length 16mm
Air Gap Height 8mm
X Damage (peak to peak) 30mm
Bl Factor (BL) 12.6 N/A
Mounting Information
Overall Diameter 8.3" / 212mm
Bolt Circle Diameter 7.7" / 195mm
Baffle Cutout Diameter-
- Front Mount 7.1" / 181mm
No. Of Mounting Holes 4
Overall Depth 3.7" / 95mm
Net Weight 7.3 lb. / 3.3 kg.
Shipping Weight 7.9 lb. / 3.6 kg.
Materials

Basket Die Cast Aluminum
Cone Carbon Fiber
Surround Treated Cloth
Dust Cap Shape Inverted
Voice Coil Copper
Former Fiberglass
Metal Parts Marine Treated
Magnet Ferrite
Thiele-Small Parameters

Resonant Frequency (fs) 78 Hz
Impedance (Re) 3.7 ohms
Coil Inductance (Le) .6 mH
Mechanical Q (Qms) 2.3
Electrical Factor (Qes) .38
Total Q (Qts) .32
Comp. Equivalent Vol. (Vas) .31 ft3 / 8.8Liters
Voice Coil Overhang (Xmax) 6.3 mm
Surface Area of Cone (Sd)m2 0.022m2
Moving Mass (Mms) 33 Grams
Reference Efficiency 1.1%
Displacement Volume 138 cm3
FREQUENCY RESPONSE & IMPEDANCE CURVE

Beyma Pro8CF Frequency

MOUNTING INFORMATION

Beyma Pro8CF Drawing
