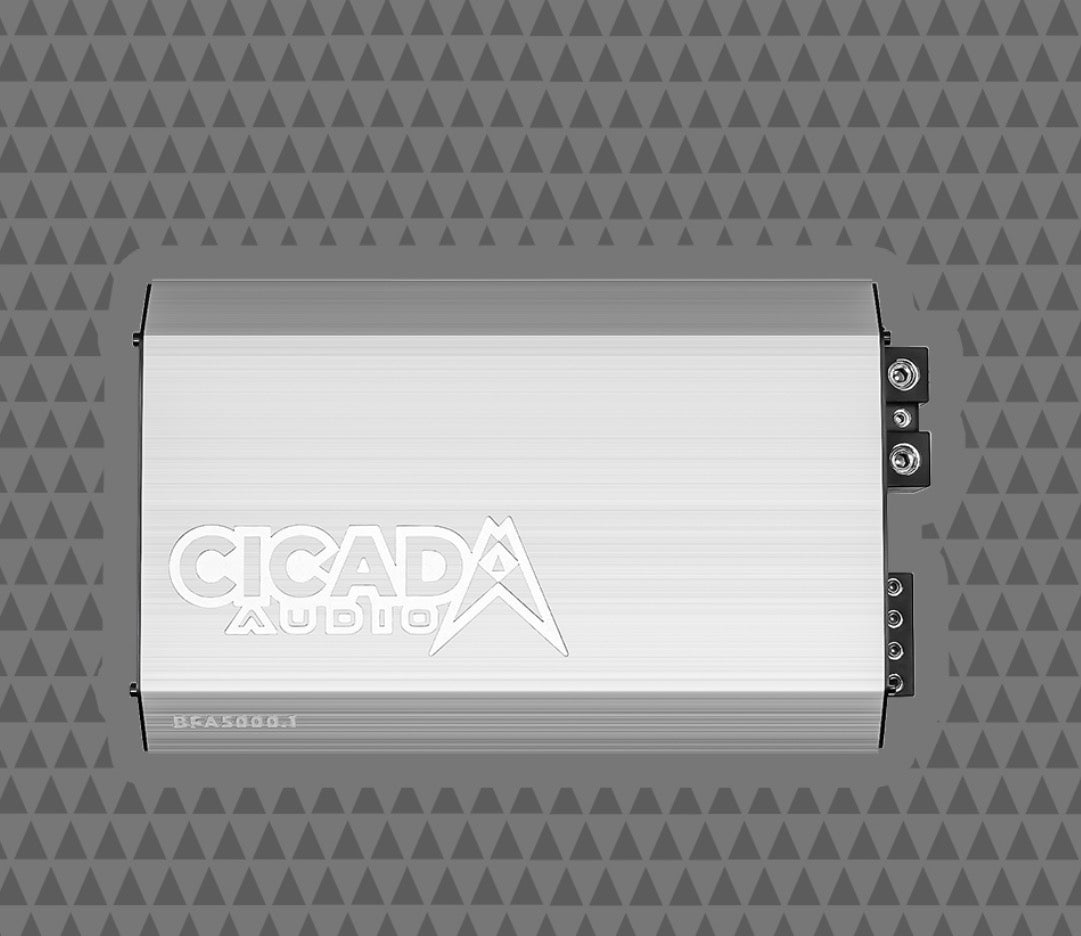

BFA5000.1 5000W x 1 MONO CLASS D AMPLIFIER Cicada bfa 5000.1

FEATURES

• Compact size engineered to never compromise, and always deliver the most powerful output
• Included mounting brackets for secure installation
• Class D lR® chipset offers latest in digital technology
• Conformal coated layer applied over the circuit board for protection against various environmental conditions
• CAD circuit provides superior overload protection
• Premium 1/0 AWG power and 12 AWG speaker busbar style inputs/outputs for solid connections
• Molex® inputs for flexible hook up via RCA or H-D® custom termination
• Clipping and Status LED indicators
• Sensitivity adjustment from 12v-0.2v
• Fully encased in extruded Aluminum heatsink
• Two (2) year warranty

SPECIFICATIONS

• RMS Power Output @ 14.4v: 3000W x 1 @ 4Ω, 5000W x 1 @ 2Ω
• SNR: 86 dB (A-weighted, 20 Hz- 250 Hz)
• Operating Voltage: 9V – 16V
• Current Draw (Music): 200 A
• Current Draw (Max): 450 A
• Recommended Fuse (Music): 200 A
• Total Efficiency: 80%
• Frequency response 20 Hz – 250 Hz +/- 3 dB
• Damping Factor: 200
• Crossover LPF: 20 – 250 Hz
• Subsonic: 20 – 50Hz
• Slope: 12 dB per octave
