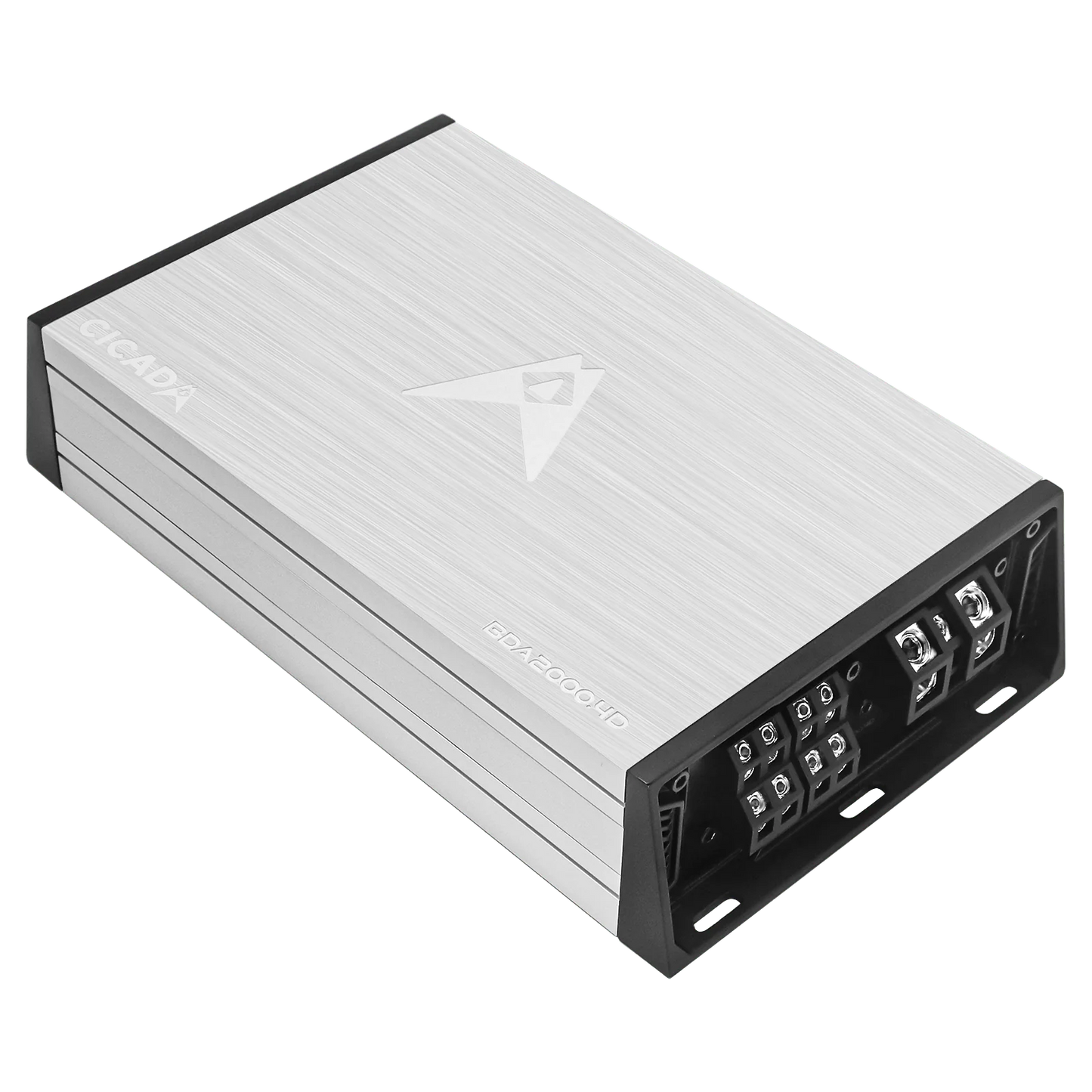

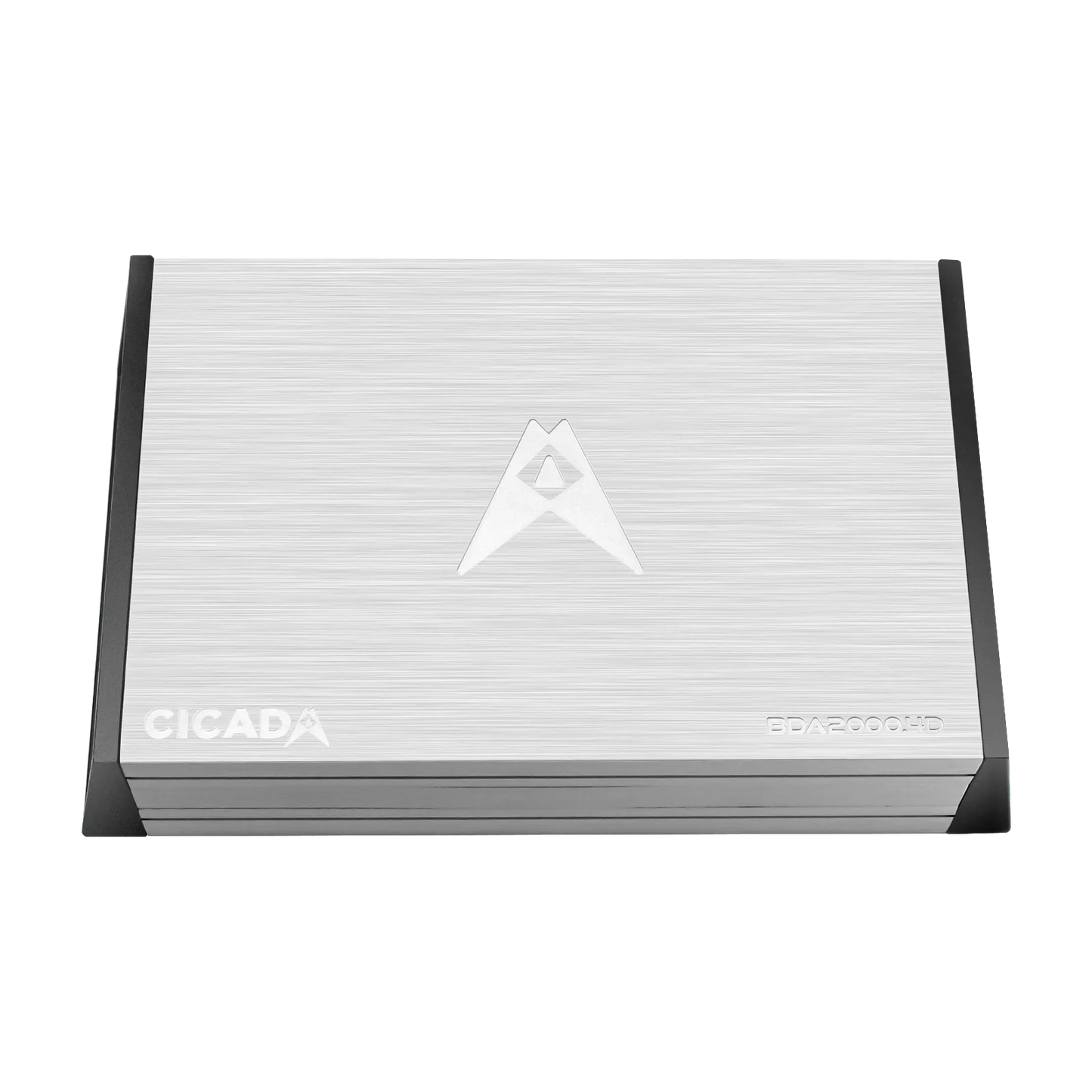

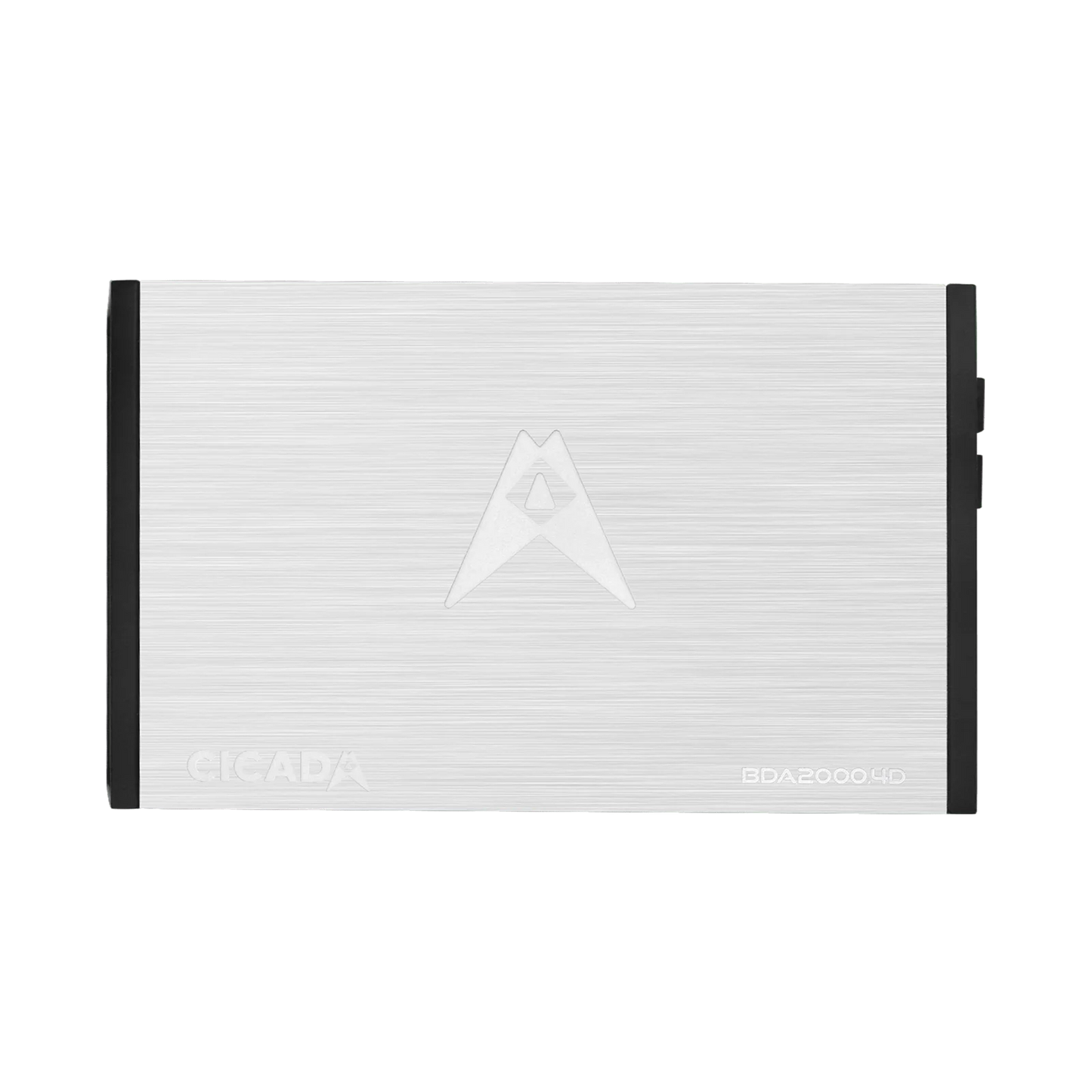

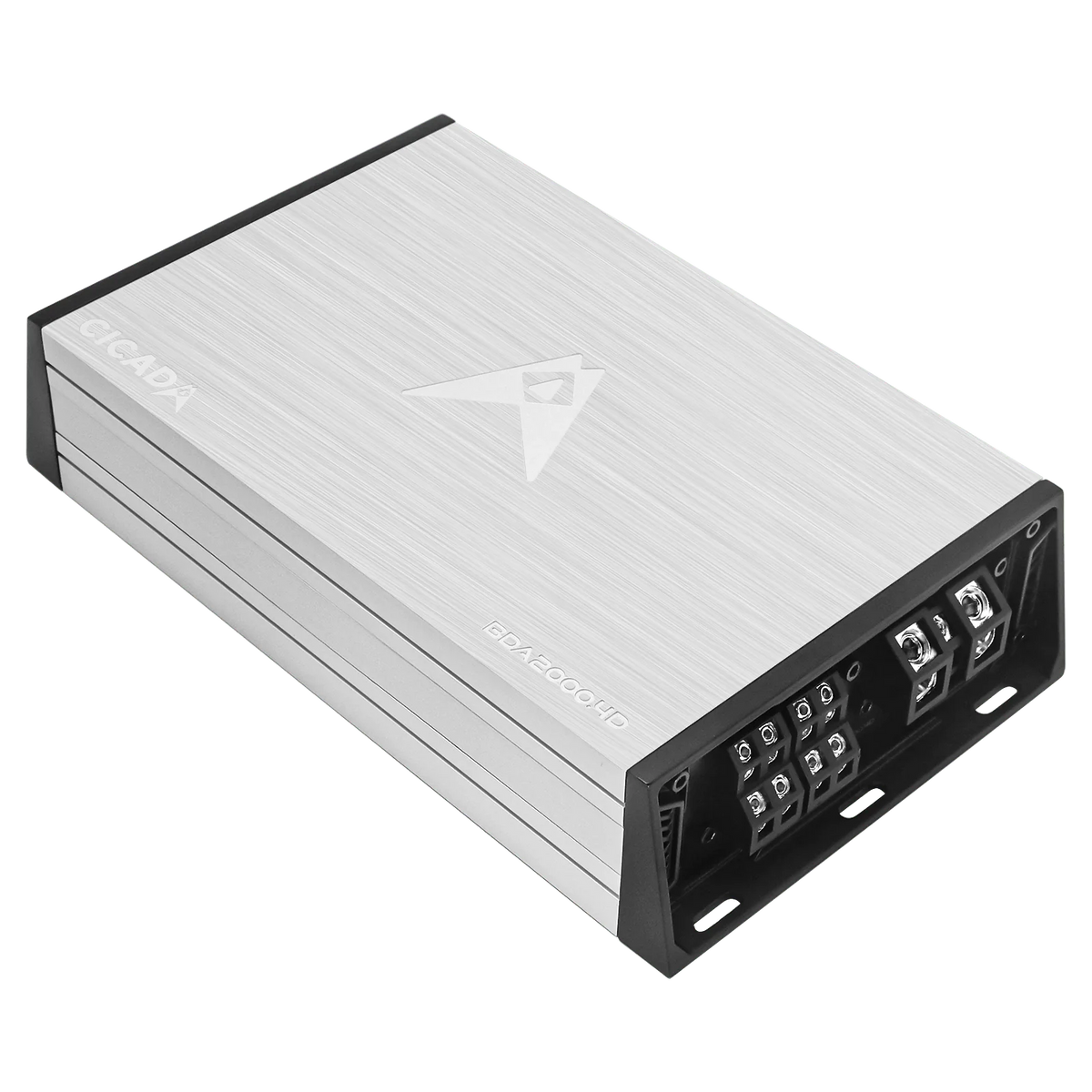

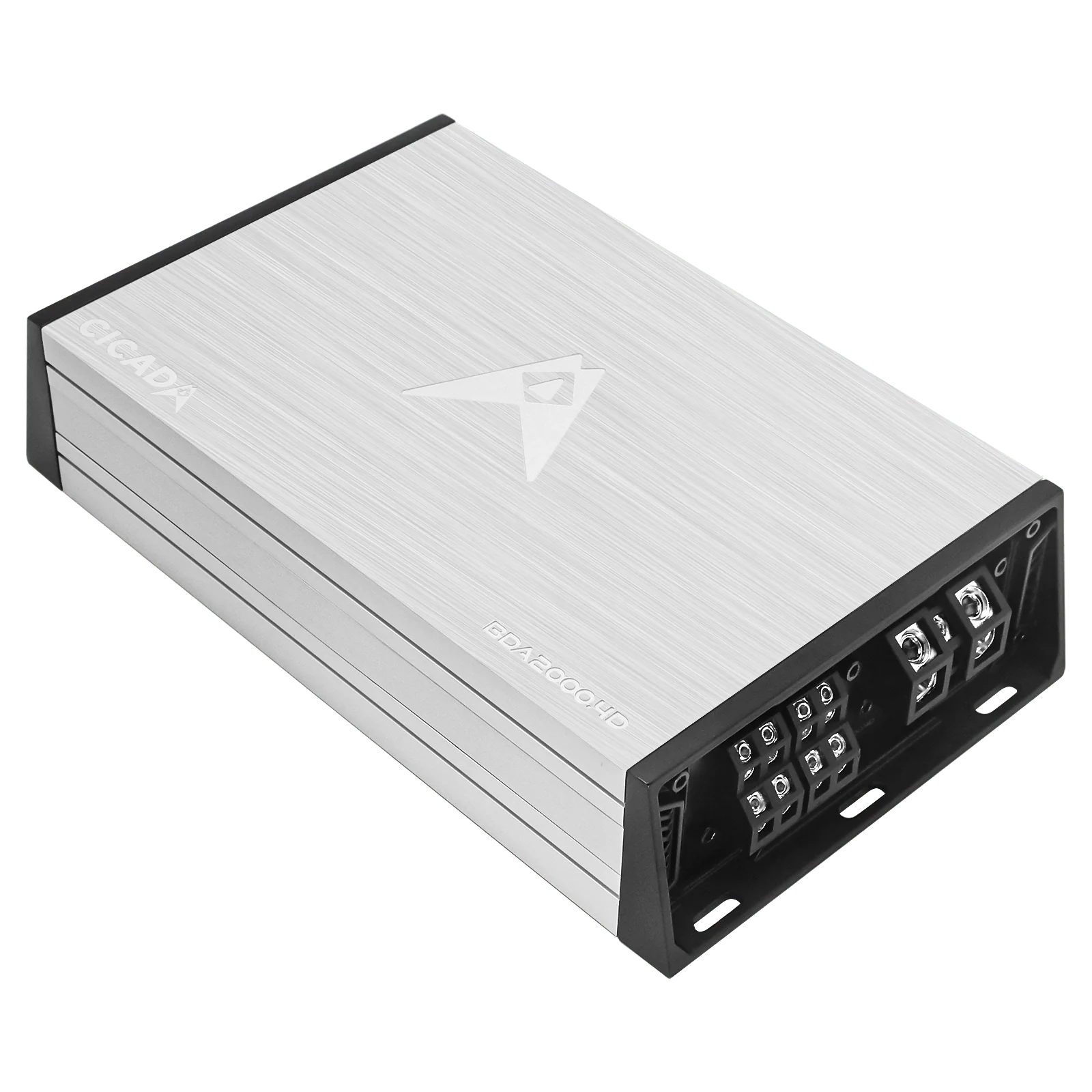

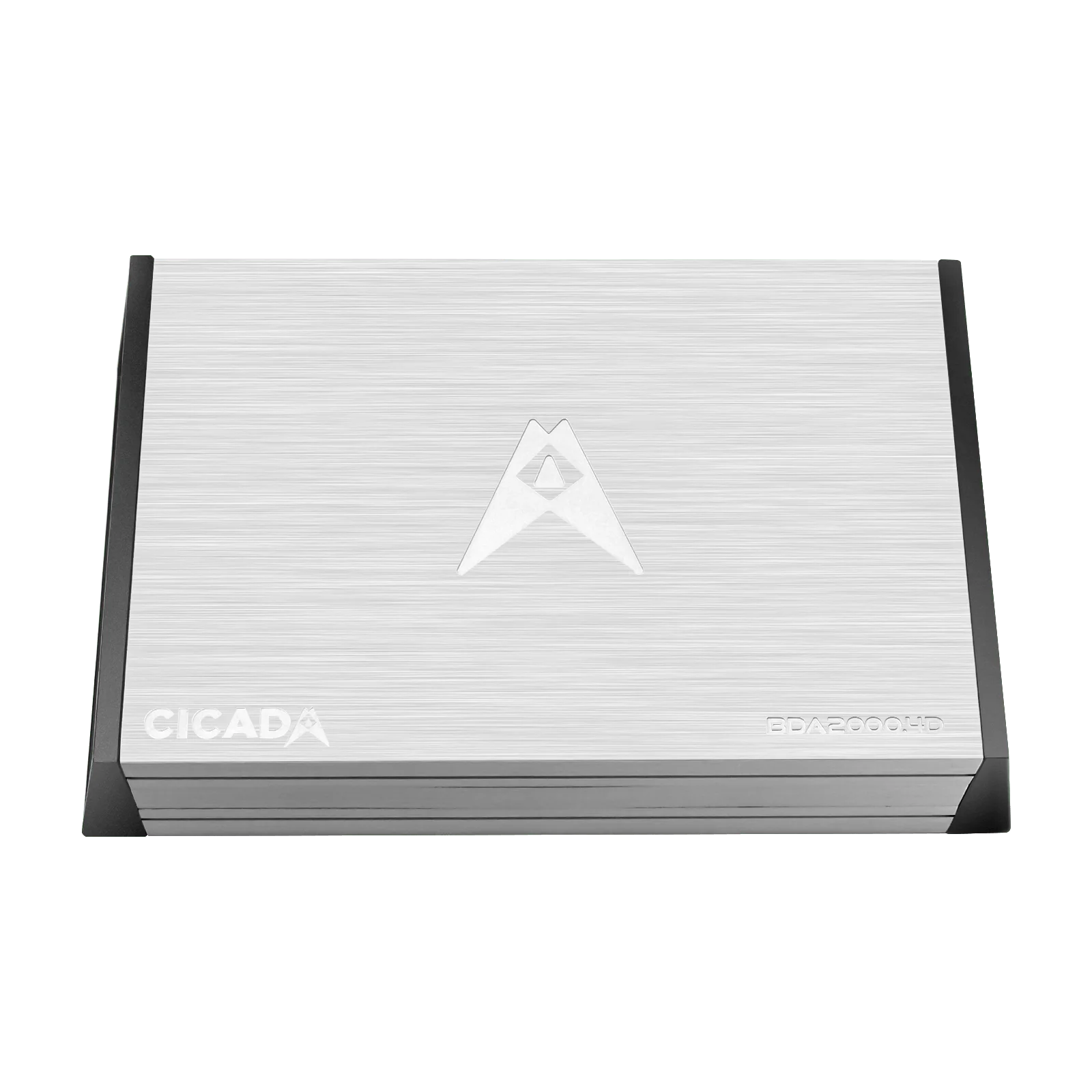

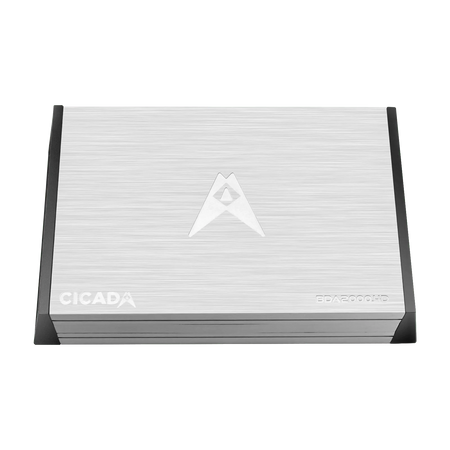

Cicada Audio BDA2000.4D

Cicada Audio BDA2000.4D

Regular price $899.99 USD
Regular price Sale price $899.99 USD
Sale Sold out
Tax included.

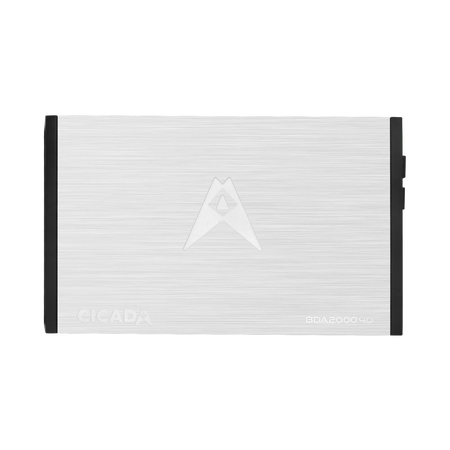

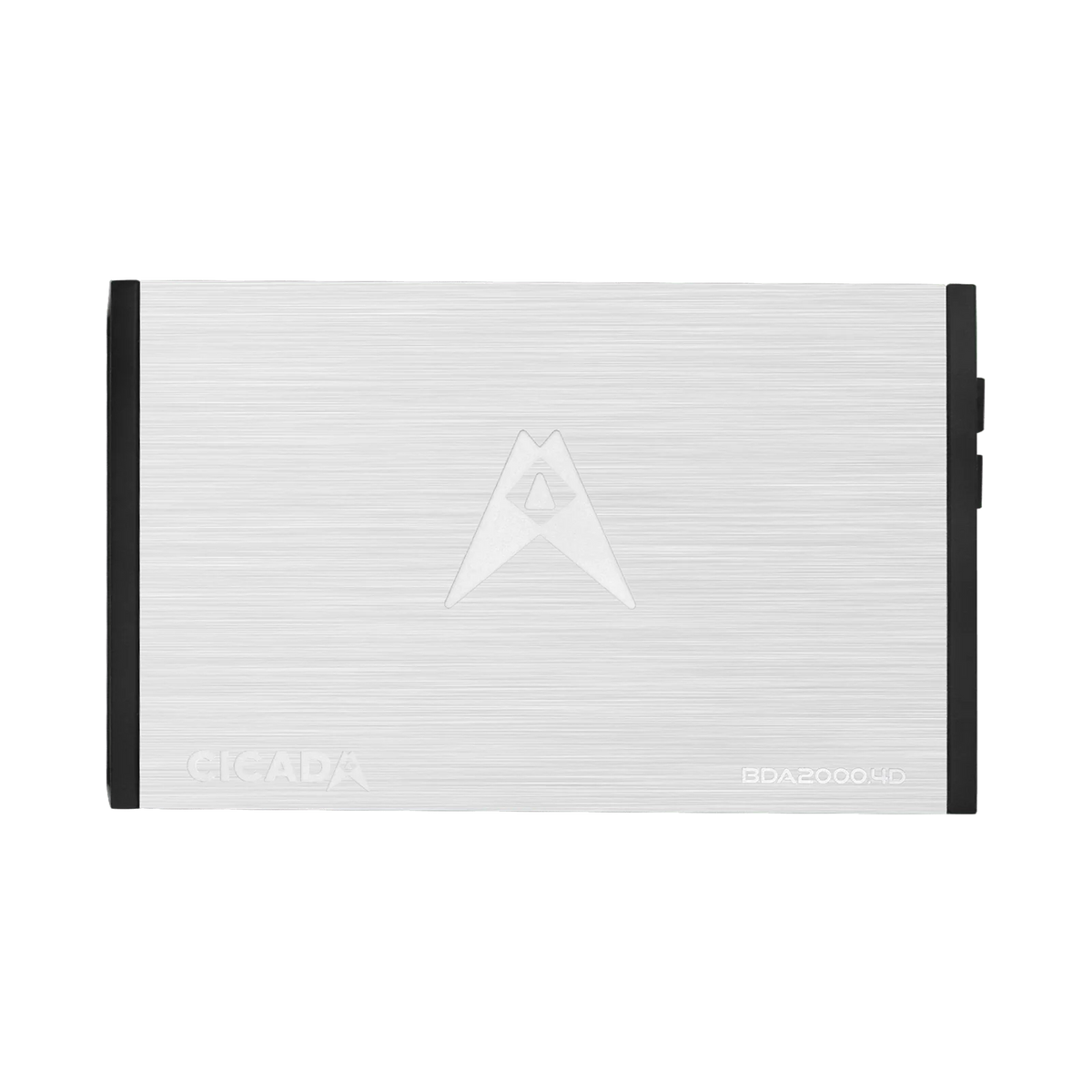

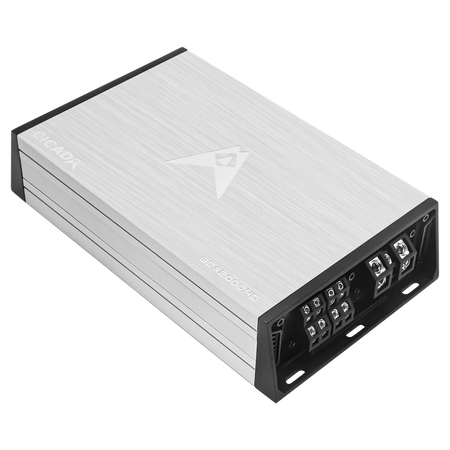

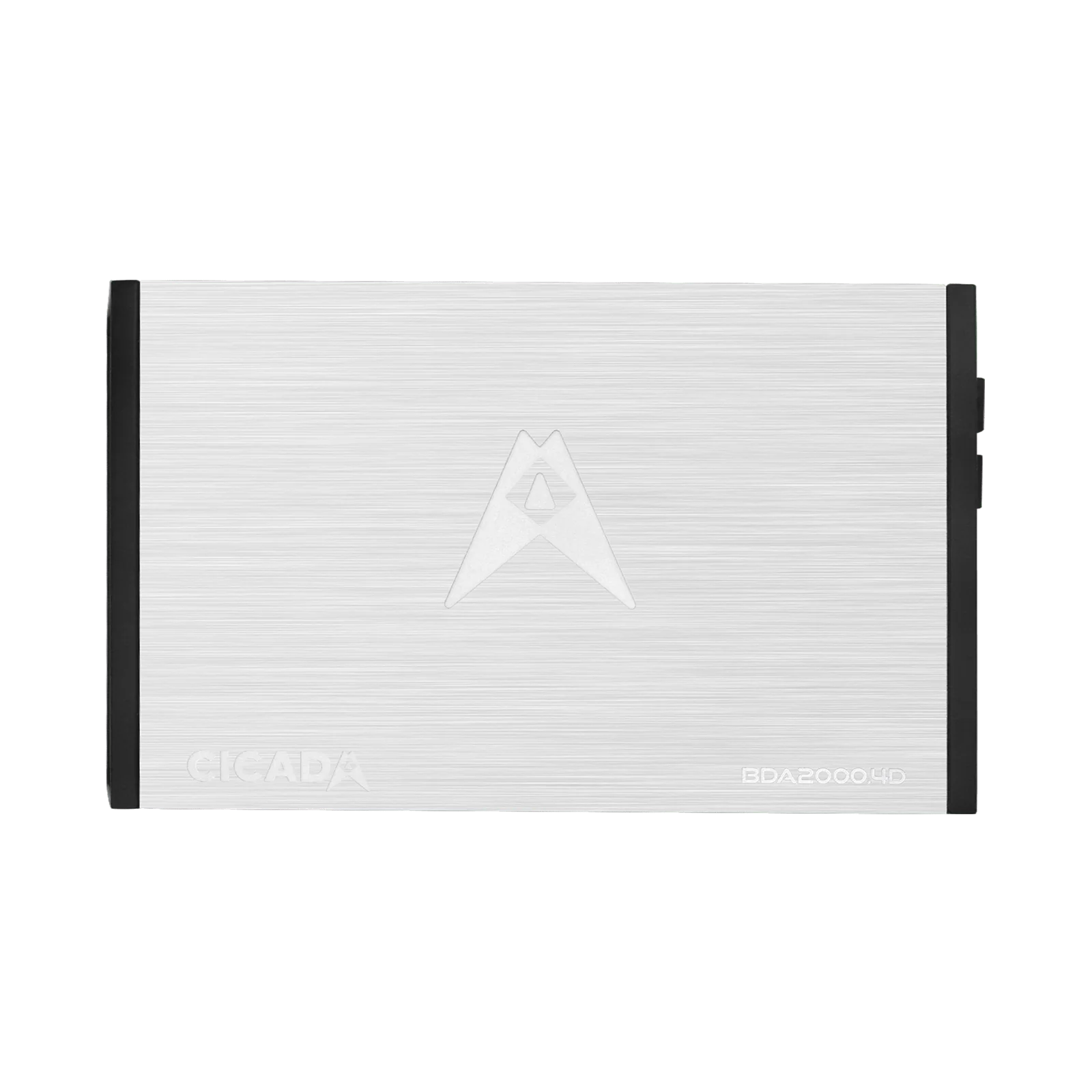

Cicada Audio BDA2000.4D Amplifier

4 CHANNEL MOTORCYCLE AUDIO AMPLIFIER

Specs

  • Power @ 14.4V @ 4Ω: 4 X 331 WRMS
  • Power @ 14.4V @ 2Ω: 4 X 542 WRMS
  • Bridge Power @ 14.46V @ 4Ω: 2 X 1044 WRMS
  • Product Dimensions: 9.14 x 5.37x 2.1 in
  • Freq Response 20-20k +/-3dB THD <0.5%
  • Recommended Fuse 120A

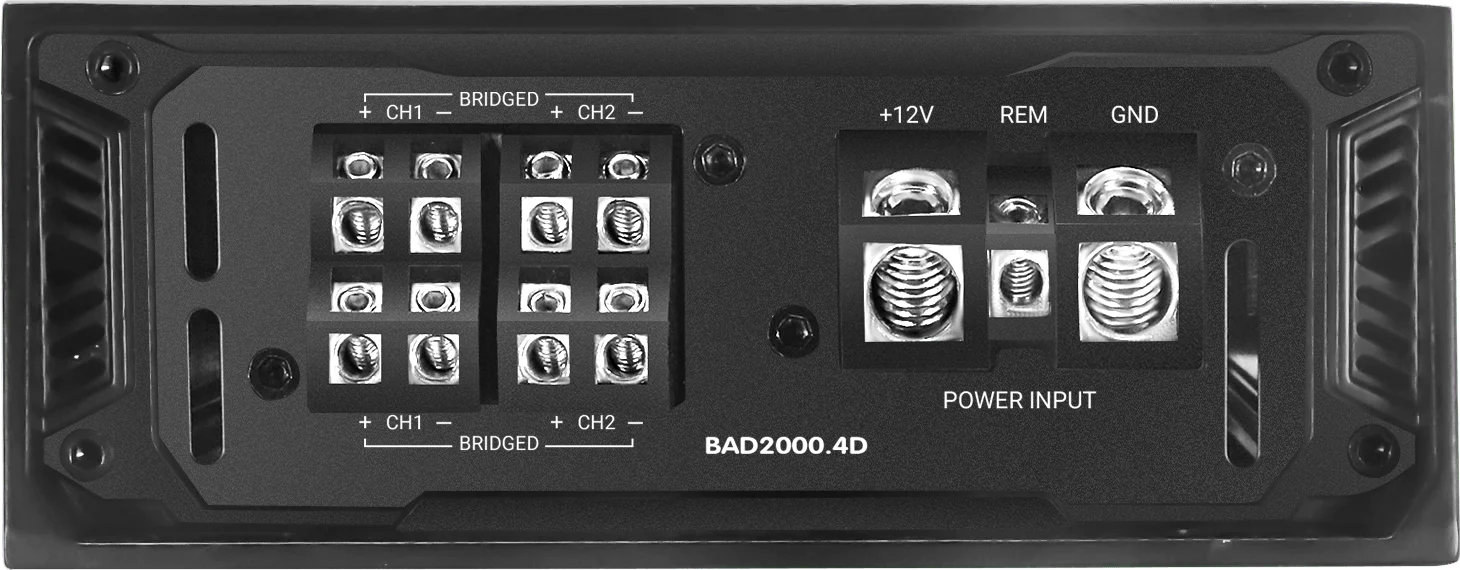

BRIDGED MONO – 2 CHANNEL

  • 2 X 866 WRMS into 4 ohms @ 12.5 Vdc
  • 2 X 1044 WRMS into 4 ohms @ 14.4 Vdc
  • Frequency response – 20-20,000 +/- 3dB THD < 0.5%
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 60 A
  • Current Draw (Max): 240 A
  • Recommended Fuse (Music): 120 A
  • Total Efficiency: 79%
  • Damping Factor: 200
  • SNR: 91dB
  • Crossover LPF/FULL/HPF: 30 TO 300Hz
  • Slope:12dB per octave
  • Gain: 0.2V – 12 Vac
  • Turn-On Configuration: REM/DC
  • THD + N (10% Rated Power): 0.1%
  • Product Dimensions (Inches / Millimeters): 9.14 x 5.37 x 2.1 in / 232 x 136.4 x 54 mm
