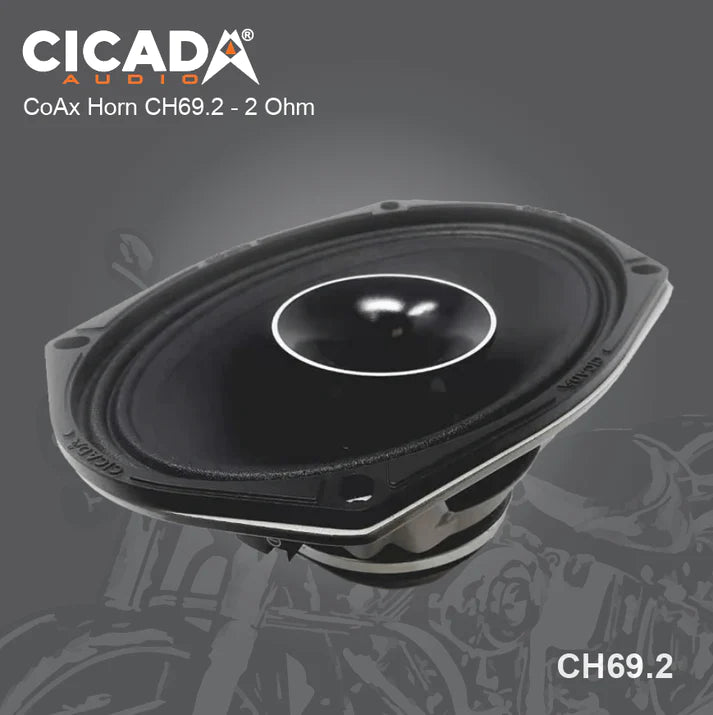

Cicada Audio CH69 Pro Coaxial Horn Speaker 6x9"
The new Cicada Audio CH69 speakers are a perfect solution for 2014 and later Harley baggers and other motorcycles. These speakers are NOT an easy fit into most bags. Typically, the bags are designed for 6 X 8’s and NOT 6 X 9’s. Just so you know… there are 9 different 6 X 9 frame sizes for us manufacturers to choose from when deciding on what kind of 6 X 9 we would like to build! (amazing as it sounds!!). They DO NOT simply bolt into the factory speaker locations (typically an adaptor is needed, or built) We had no choice IF we wanted 2-inch voice coils for added power handling as this is pretty much the ONLY 6 X 9 frame that will handle 2-inch voice coils and 1.4-inch tweeters.
Available in 4Ω or 2Ω …the 2Ω get more output with smaller higher efficiency / lower output amplifiers and don’t NEED a giant “current hog” for an amplifier to drive these.
Specs:
- 500WRMS/1000 MAX Power Handling- PAIR
- Frequency Response: 75Hz -20Khz+/-5dB
- Neodymium High Energy/ Light Weight N35 Magnet structure
- Heavy Duty/ Die-cast Aluminum Basket
- 2.0” 2Ω or 4Ω – High Temp Voice Coil (Black Coat™) Voice Coil MidBass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- High Sensitivity:4dB / 99dB 1W/1M Average (1W/1M – 2.83V)

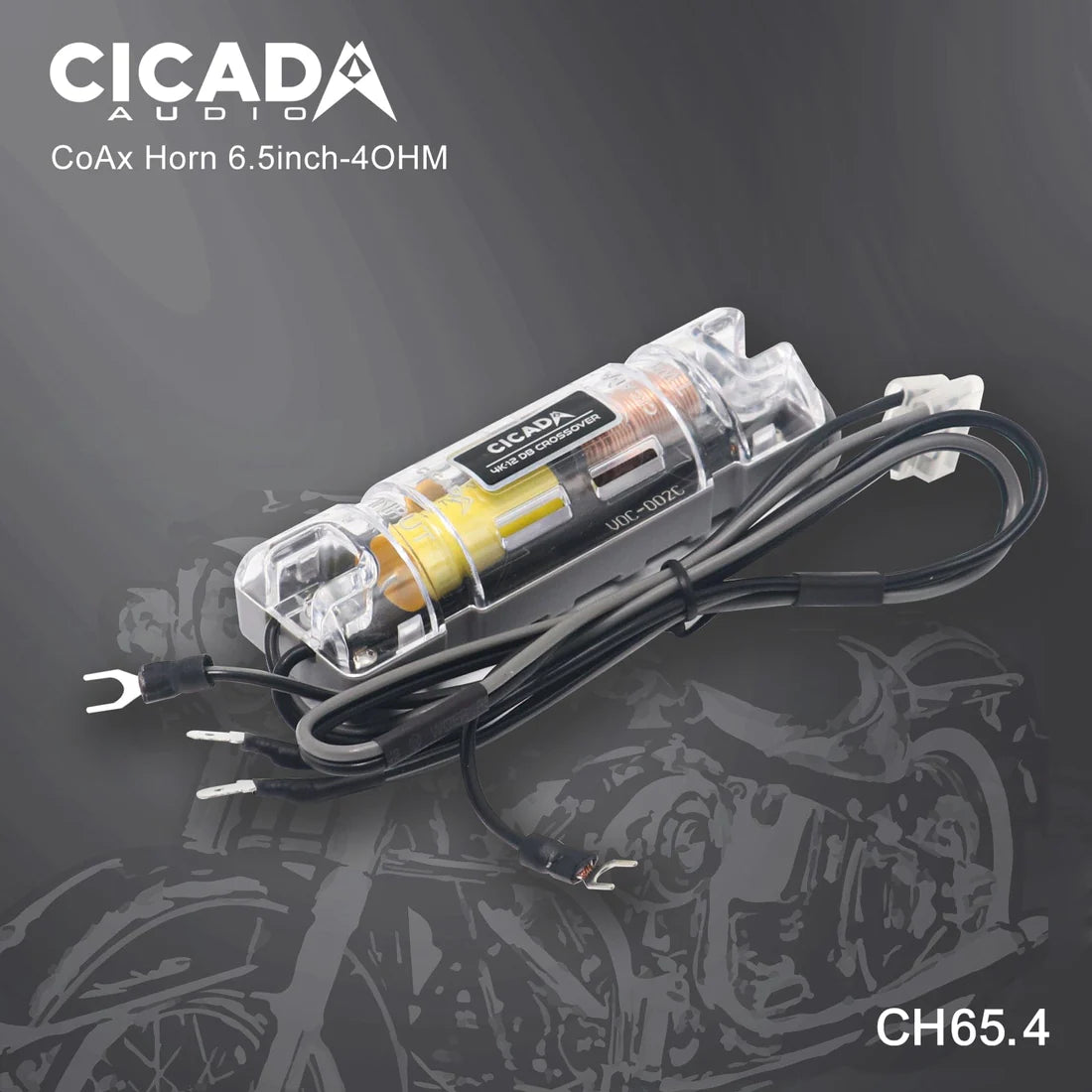

- 12dB Crossover with custom tooled/ Vented crossover case
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Total Diameter: 9.3” X 6.6” / 237mm X 167mm
- Mounting Diameter: 8.9” X 6.1” / 226.5mm X 155mm
- Mounting Depth: 3.7” / 93.2mm
- SOLD IN PAIRS
- Weather treated
FITMENT APPLICATIONS:
All Cicada Audio 8 inch and 6 X 9;s are “CUSTOM “ fitted. They do NOT drop in for an easy install (but neither does 95% of all 6 X 9’s and 100% of ALL 8 inch. These are ALL CUSTOM fitted. We recommend you find a really good motorcycle audio guy to do your install.
