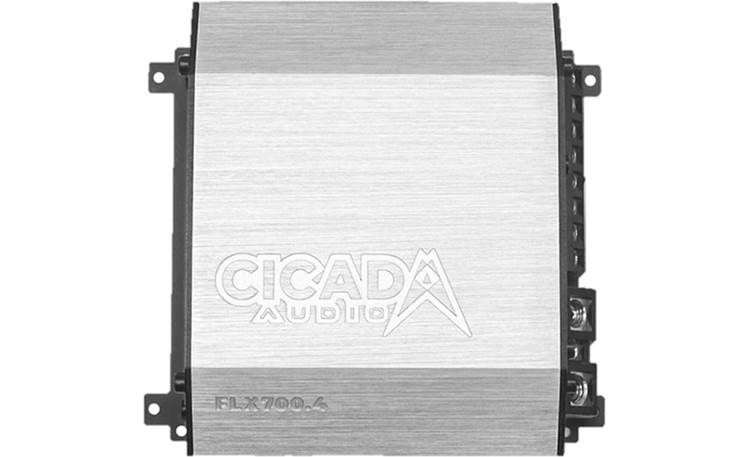

Cicada Audio FLX700.4 Amplifier

Description

Cicada Audio FLX700.4 Amplifier
4 channel Motorcycle Audio Amplifier
175w x 4 CH Micro Amplifier
4 CHANNEL POWER AMPLIFIER
4 X 110 WRMS into 4 ohms @ 12.5 Vdc
4 X 128 WRMS into 4 ohms @ 14.4 Vdc
4 X 140 WRMS into 2 ohms @ 12.5 Vdc
4 X 175 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
2 X 261 WRMS into 4 ohms @ 12.5 Vdc
2 X 302 WRMS into 4 ohms @ 14.4 Vdc
Frequency response – 20-20,000 +/- 3 dB THD < 0.5%
Operating Voltage: 8 V – 16 V
Current Draw (Music): 60 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 120 A
Total Efficiency: 79%
Damping Factor: 200
SNR: 91dB
Crossover LPF/FULL/HPF: 30 TO 300 Hz
Slope:12 dB per octave
Gain: 0.2 V – 12 Vac
Turn-On Configuration: REM/DC
THD + N (10% Rated Power): 0.1%
Product Dimensions (Inches / Millimeters): 4.5 x 4.9 x 2.0 in / 114 x 124 x 51 mm
