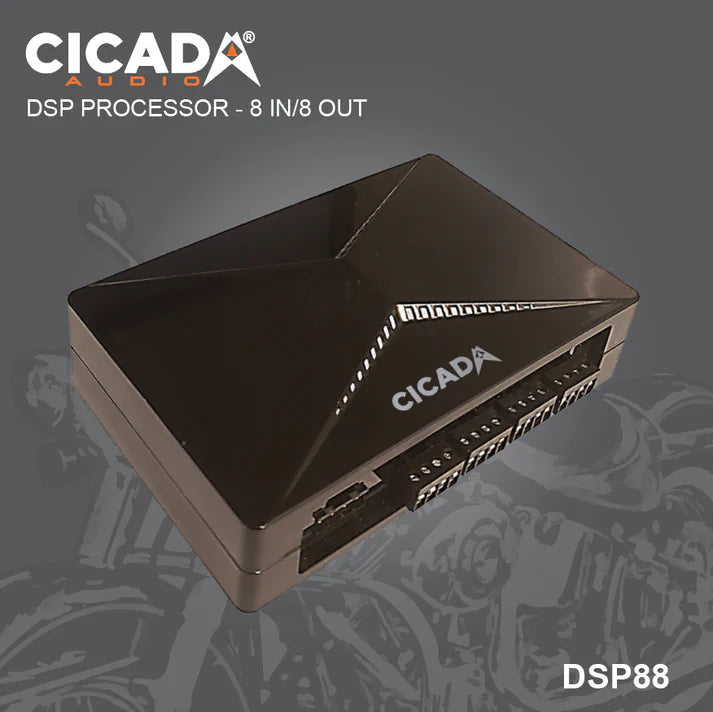

CICADA DSP88 - DIGITAL SOUND PROCESSOR

DSP88 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

• Signal Input:  8 High-Low Level Inputs
• Signal Output:  8 RCA Outputs
• Output Impedance: 200 Ohms
• Frequency Response:  20Hz – 20kHz +/- 0.5Db
• Input Voltage:  0.02V –  8V
• Input Impedance:  20k Ohms
• Output Voltage: Up to 4V
• THD+N:  <1.0%
• Signal-to-Noise:  >100 dBA (A-weighted)
• Digital Signal Processing (DSP):
• Speed: 147 MIPS    Precision: 32-Bit    Accumulators: 72-bit
• Digital to Analog (DAC):  Precision: 24-Bit
• Dynamic Range: 108 dB
• THD+N: -98 dB
• Analog to Digital (ADC):  Precision: 24-Bit
• Dynamic Range: 105 dB
• THD+N: -98 dB
• Operating Voltage:  9 – 16 VDC
• Crossover Frequency:  Variable: 20 Hz to 10 kHz
• Crossover Slope:  Selectable Slope: 6/12/18/24/36/48 dB/Octave
• EQ Frequency Controls:  Selectable Q: 0.05 to 20.0
• Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)
• PNP 14 up HD harness stock radio inside box
