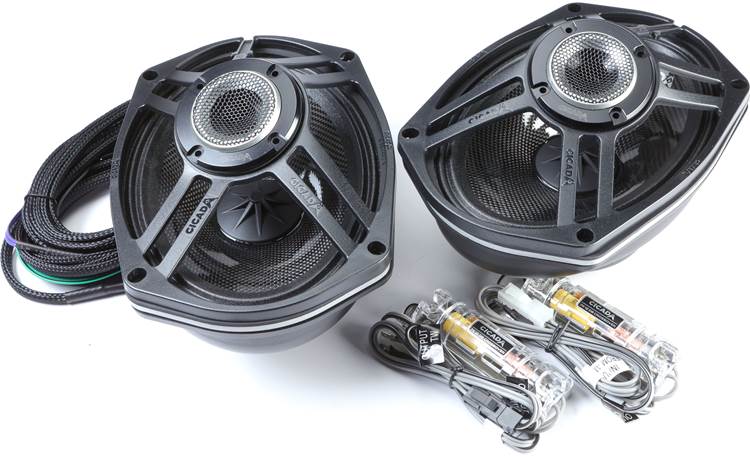

CXK69.2 CXK69.4 6X9-INCH MID-BASS COMPONENT SPEAKER KIT – 2Ω or 4Ω

MID-BASS FEATURES

Rain or Shine™ all weather performance design
OFC Copper shorting ring for extended high frequency performance
Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
N35SH Neodymium magnet motor
Die cast Aluminum custom tooled basket with Vortex Flow Venting™
Two (2) year warranty
MID_BASS SPECIFICATIONS

2Ω / 6X9-inch mid-bass driver
4Ω / 6X9-inch mid-bass driver
Power Handling: 250W RMS / 500W MAX
Voice Coil: 2-inch/51mm mid-bass
Cone: Carbon Matrix Composite™
Magnet: Neodymium
Sensitivity: 94 dB, 1W / 1M
Frequency Response: 70 Hz – 10 kHz +/- 3 dB
Mounting Depth: 3.26-inch/83mm
Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm
TWEETER FEATURES

Rain or Shine™ all weather performance design
Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
OFC Copper wire voice coil offers great sound while generating less heat
Custom tooled, vented, encased external crossover
Field replaceable diaphragm
Aluminum die cast custom tooled backplate
N35SH Neodymium magnet motor
Two (2) year warranty
TWEETER SPECIFICATIONS

4Ω / 1-inch shallow ring radiator horn tweeter
Power Handling: 50W RMS / 100W MAX
Voice Coil: 1-inch/25mm tweeter
Tweeter Dome: Aluminum
Crossover: 12 dB @ 7 kHz
Magnet: Neodymium
Sensitivity: 101 dB, 1W / 1M
Frequency Response: 2 kHz – 20 kHz +/- 3 dB
Mounting Depth: 1.1-inch/28mm
Mounting Diameter: 2-inch/50.8mm
