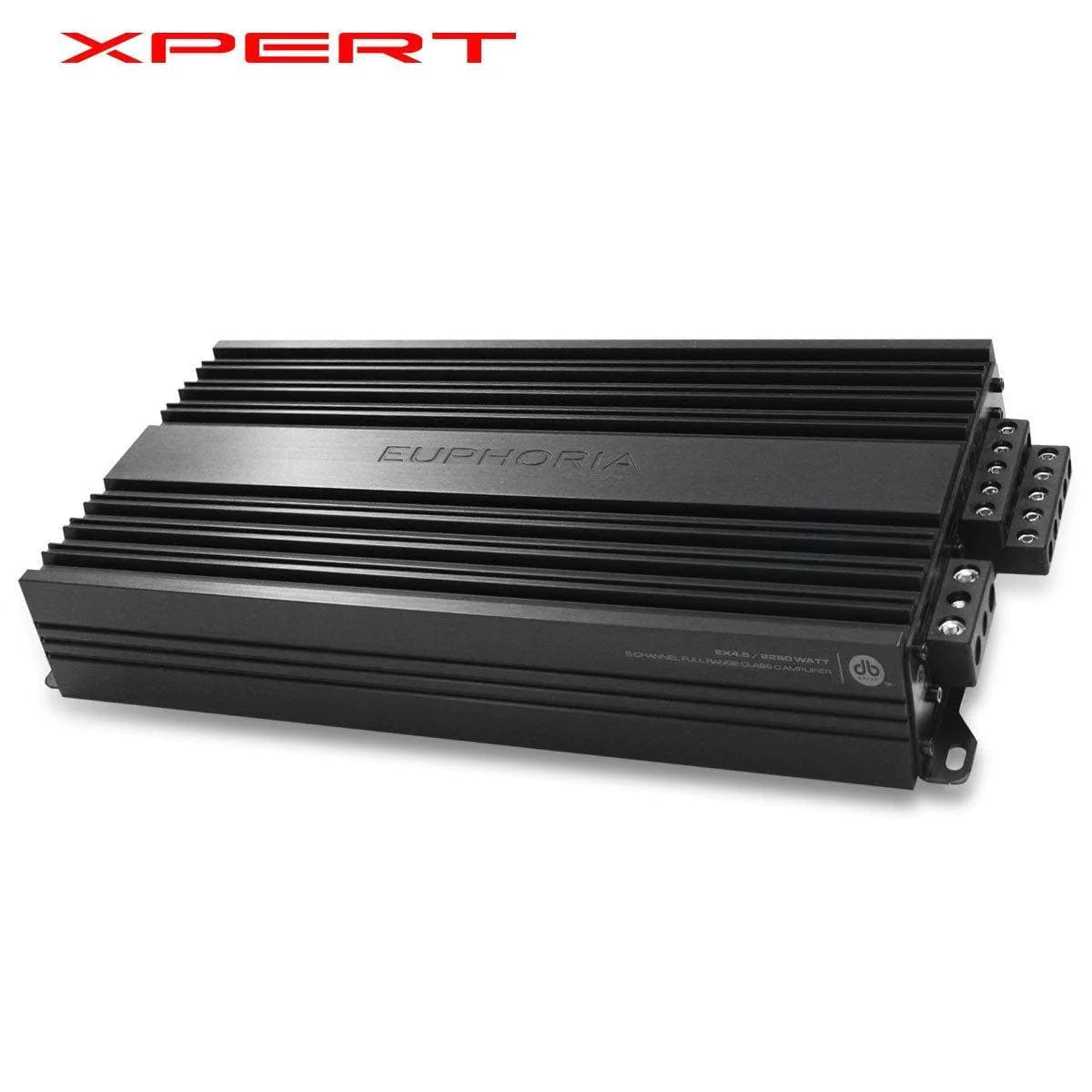

DB Drive Euphoria XPERT EX4.5 2250 Watt Full Range Class D 5 Channel Amp

• Audiophile Grade tiffany RCA connectors
• Buffered full range RCA pass through outputs
• High efficiency full range Class D Technology
• Direct Connect Speaker terminals
• Large Gauge Power Wire Inputs
• Speaker Short Circuit Protection
• Conformal coated moisture resistant PCB

Voltage

• 4Ω @ 14.4 Volts: 4 x 200 Watts + 1 x 725 watts @ 4ohm
• 2Ω @ 14.4 Volts: 4 x 400 Watts + 1 x 1000 Watts @ 2ohm


Specifications

• Working Voltage: 10-16Volts
• Freq Response 20HZ-35kHz
• Signal to Noise Ration <62dB
• Damping Factor 100 dB<
• Low Level Input 6C-.2V
• HP Filer 20hz - 500Hz (1-4 channels)
• LP Filter 50Hz- 500kHz (channel 5)
• Min Impedance 2Ω Stereo
