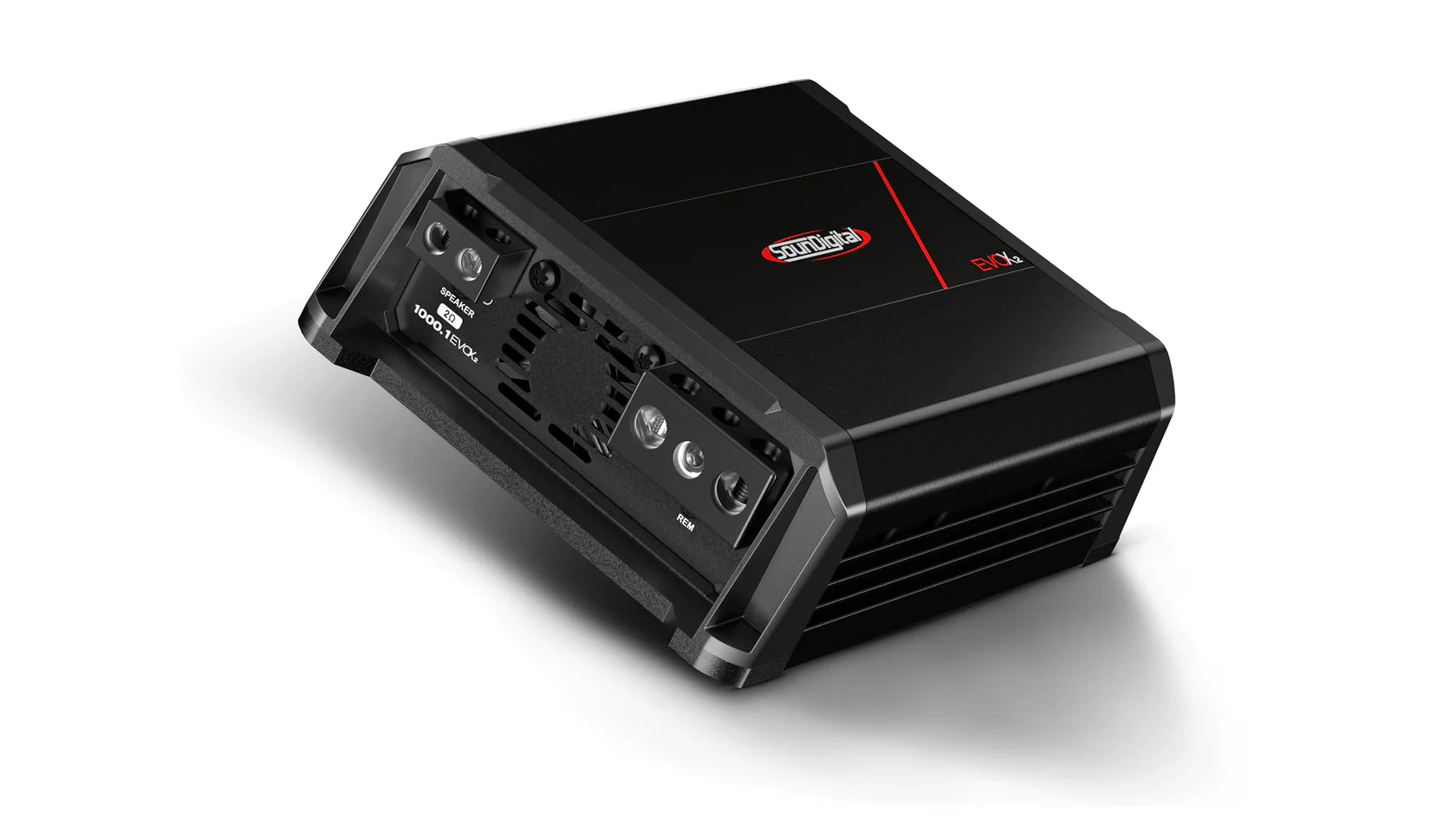

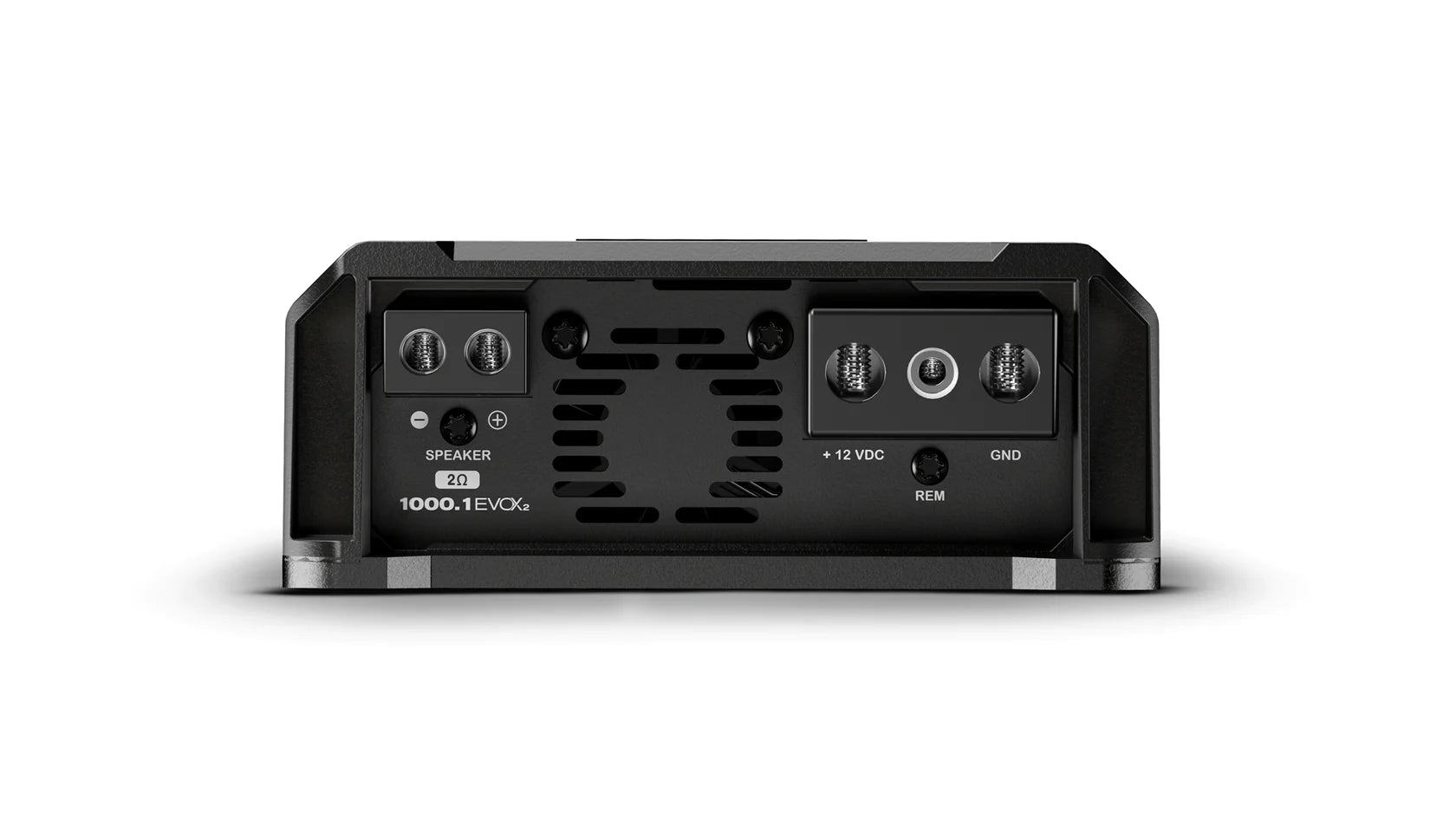

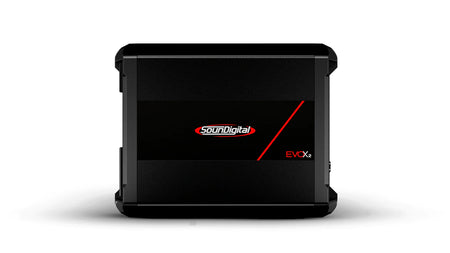

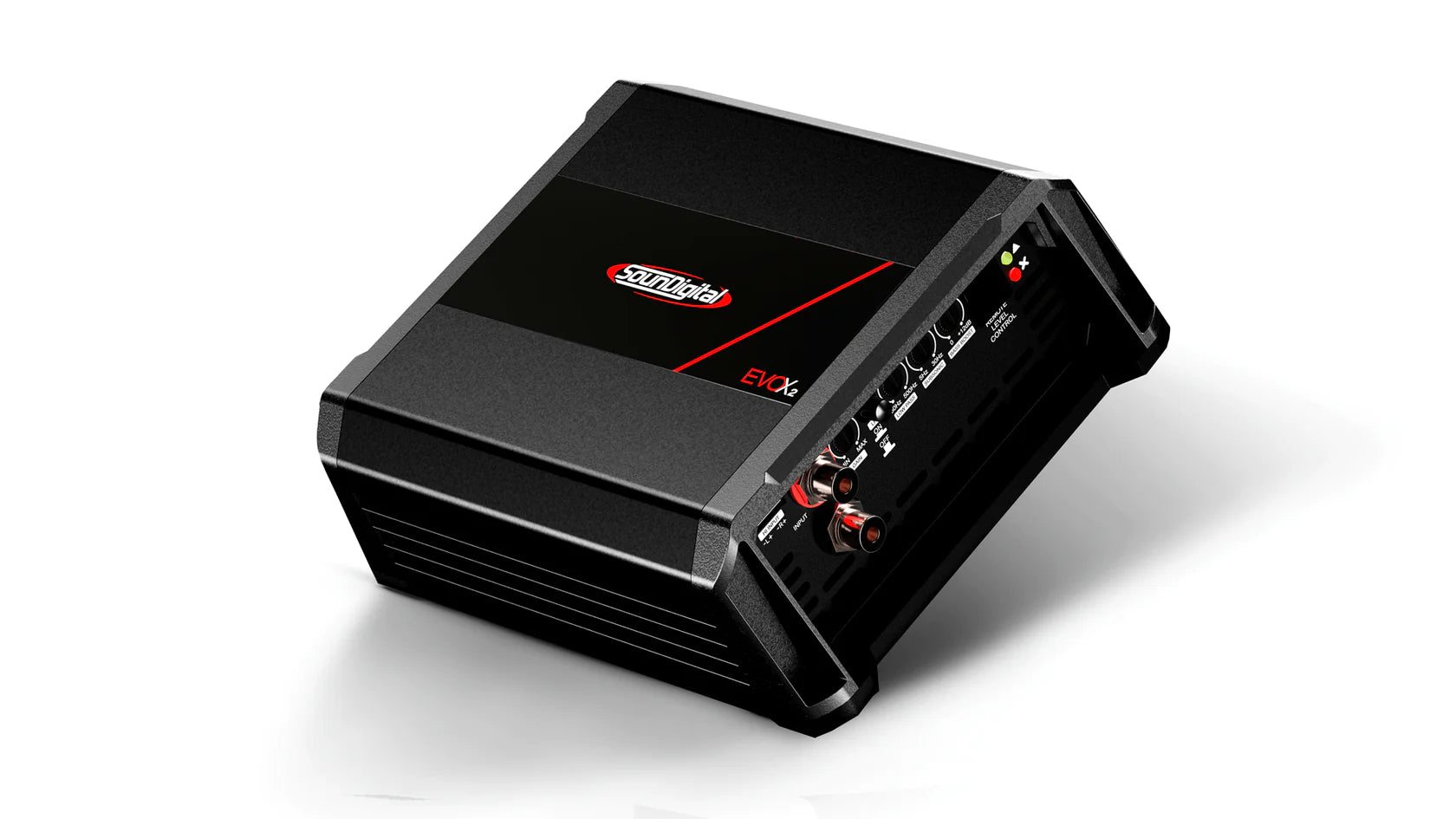

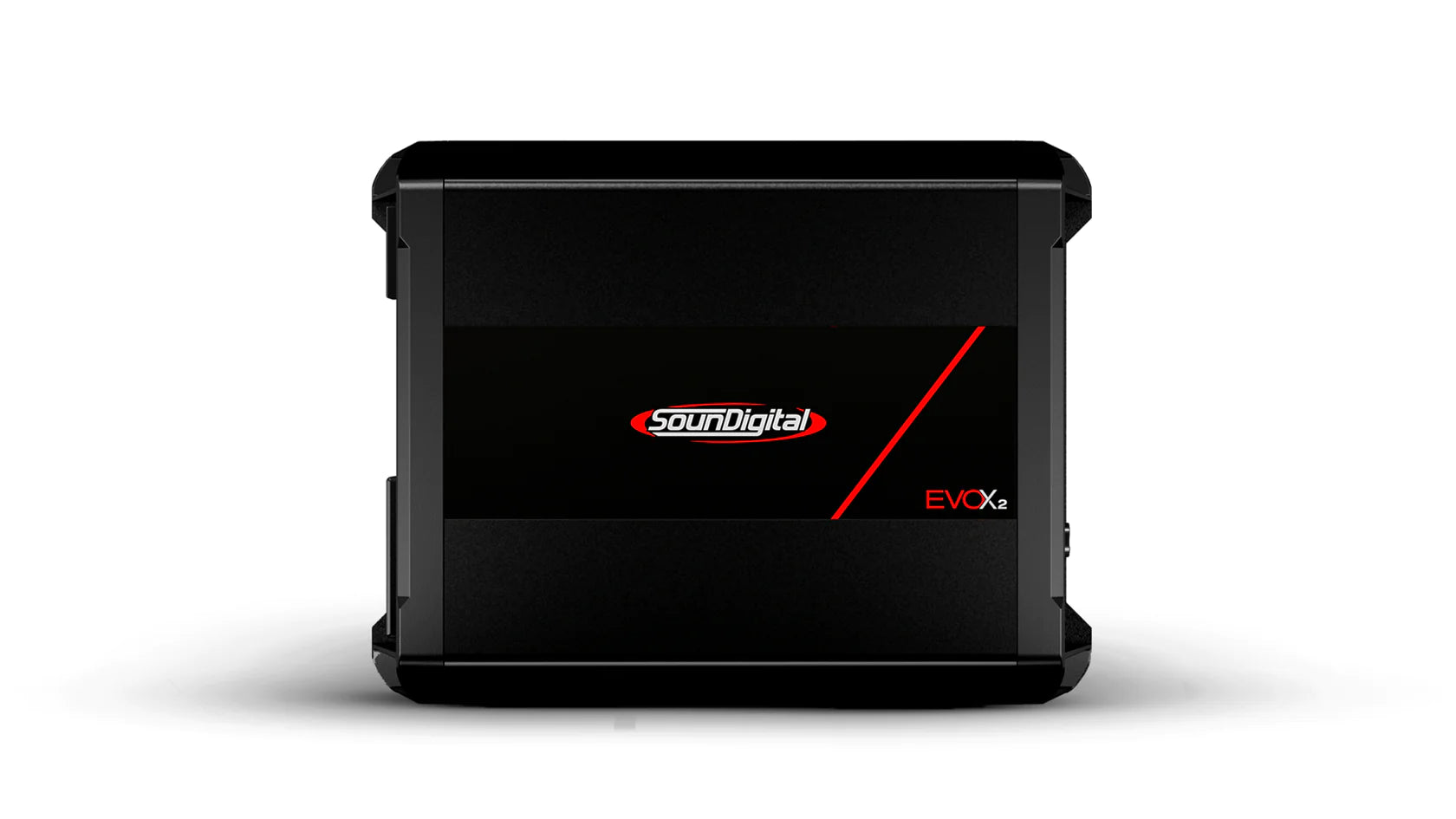

SounDigital EVOX2 1000.1

1000.1 EVOX2 - 1Ω

• Power @ 4Ω: 1 X 476 WRMS
• Power @ 2Ω: 1 X 721 WRMS
• Power @ 1Ω: 1 X 1000 WRMS
• Operating Voltage: 8V – 16V
• Current Draw (Music): 44 A
• Current Draw (Max): 88 A
• Recommended Fuse (Music): 50 A
• Total Efficiency: 89%
• Damping Factor: >3000
• Frequency Response (-3dB): 5Hz – 25kHz
• SNR: 94dB
• Crossover HPF: 5Hz – 40Hz
• Crossover LPF: 50Hz – 500Hz
• THD + N (10% Rated Power): 0.1%
• Product Dimensions: 7.1 x 5.4 x 2.2 in
• Product Dimensions: 18.1 x 13.6 x 5.5 cm

1000.1 EVOX2 - 2Ω

• Power @ 4Ω: 1 X 739 WRMS
• Power @ 2Ω: 1 X 1000 WRMS
• Power @ 1Ω: N/A
• Operating Voltage: 8V – 16V
• Current Draw (Music): 45 A
• Current Draw (Max): 90 A
• Recommended Fuse (Music): 50 A
• Total Efficiency: 86%
• Damping Factor: >3000
• Frequency Response (-3dB): 5Hz – 25kHz
• SNR: 94dB
• Crossover HPF: 5Hz – 40Hz
• Crossover LPF: 50Hz – 500Hz
• THD + N (10% Rated Power): 0.1%
• Product Dimensions: 7.1 x 5.4 x 2.2 in
• Product Dimensions: 18.1 x 13.6 x 5.5 cm
